CPC Series

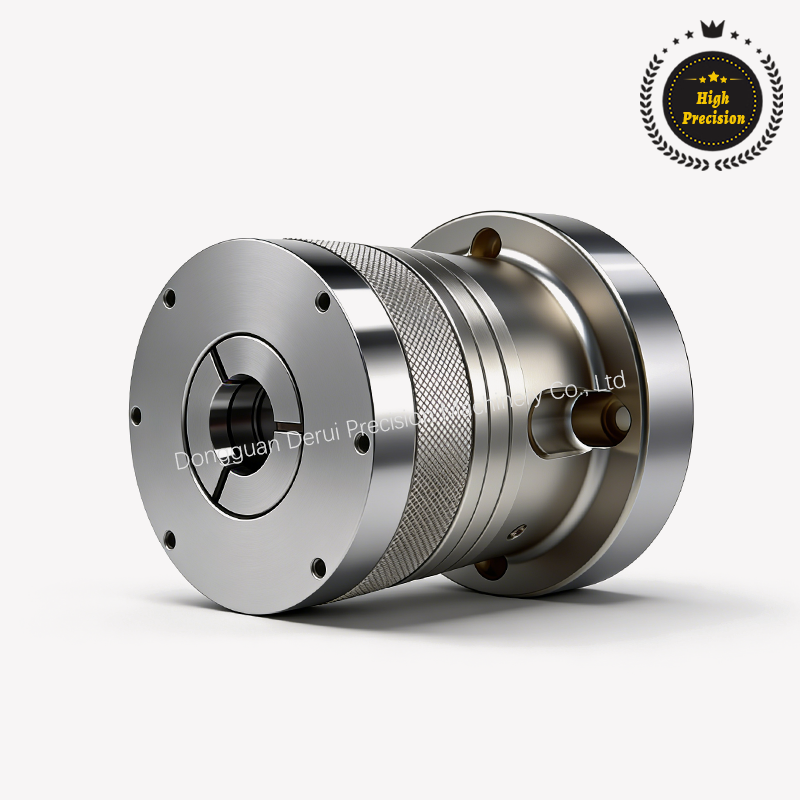

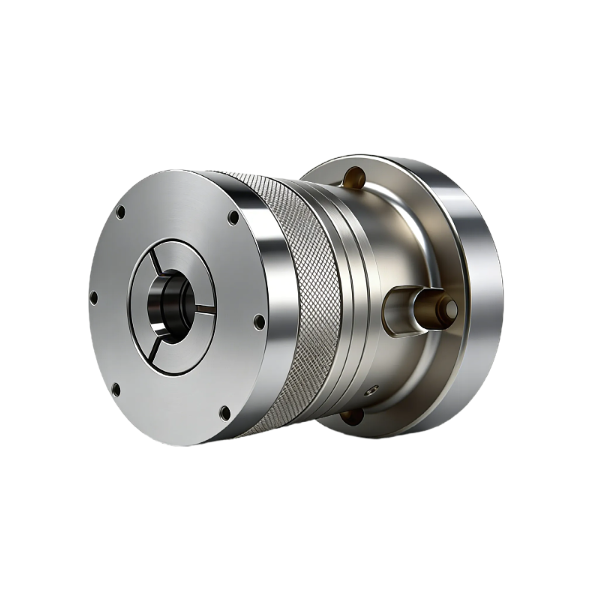

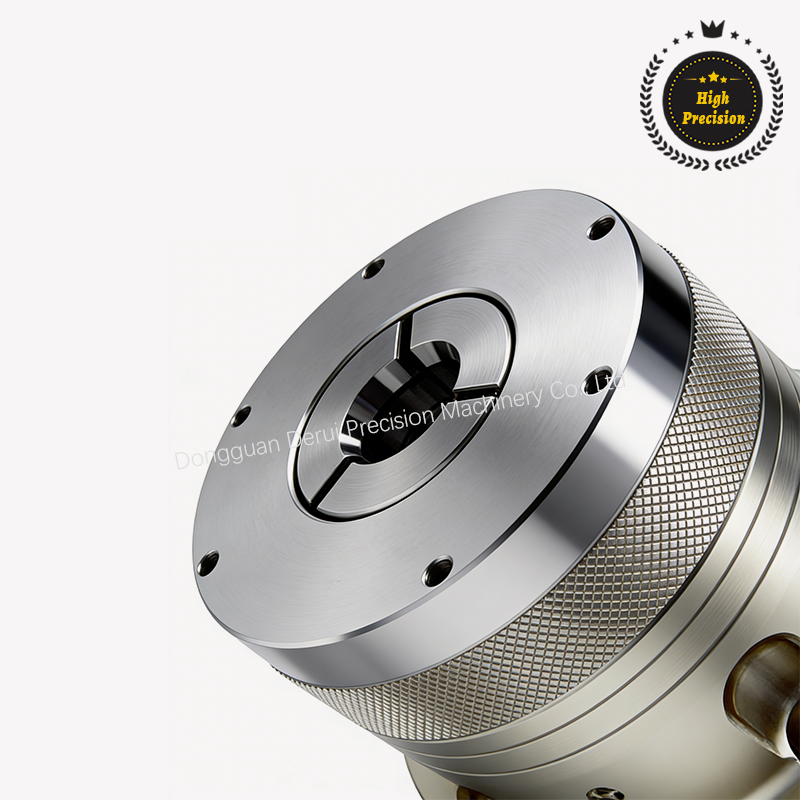

Collet Chuck (push-forward type)
High Precision
$ 575 USDMotor price not included

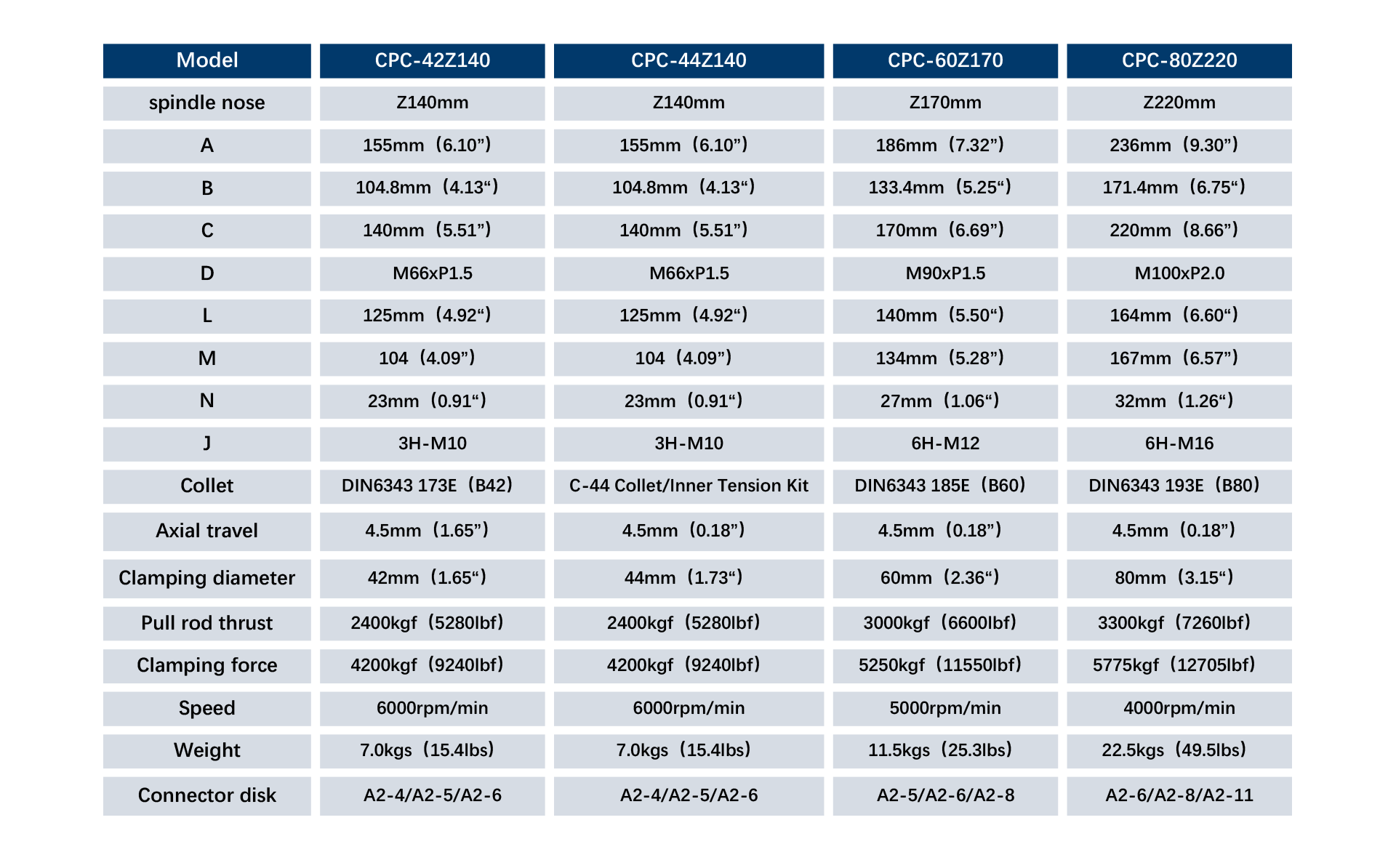

Model
DGDR CPC-80Z220
DGDR CPC-60Z170
DGDR CPC-44Z140
DGDR CPC-42Z140
Work with push type collet as DIN6343 standard
High speed and high rigidity
173E(B42),185E(B60),193E(B80)
Installation is compatible with through
holepower chuck, share flange adaptor as well
Most use in turning machine, CNC lathes

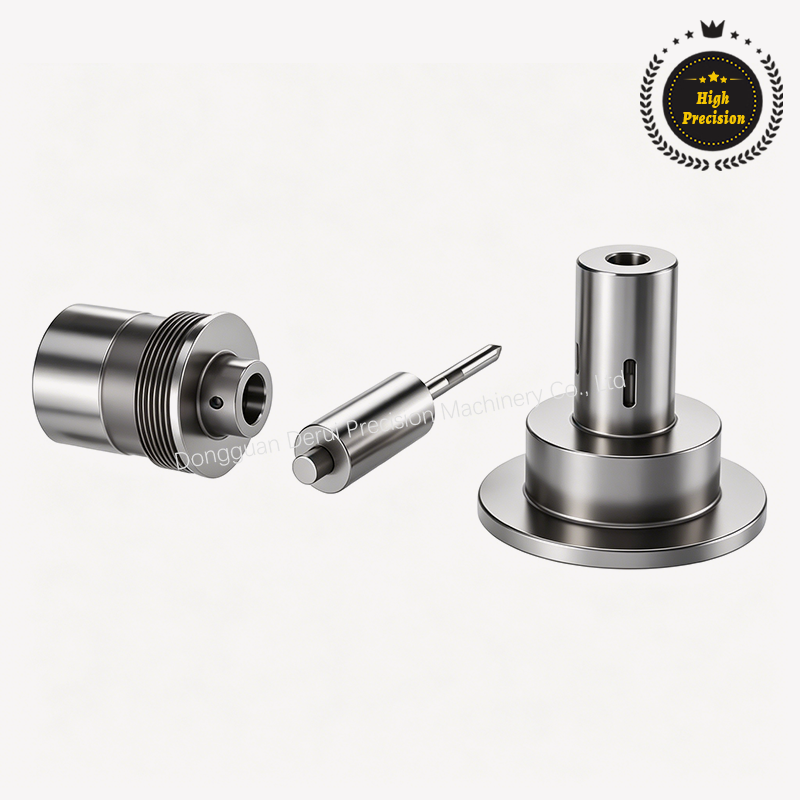

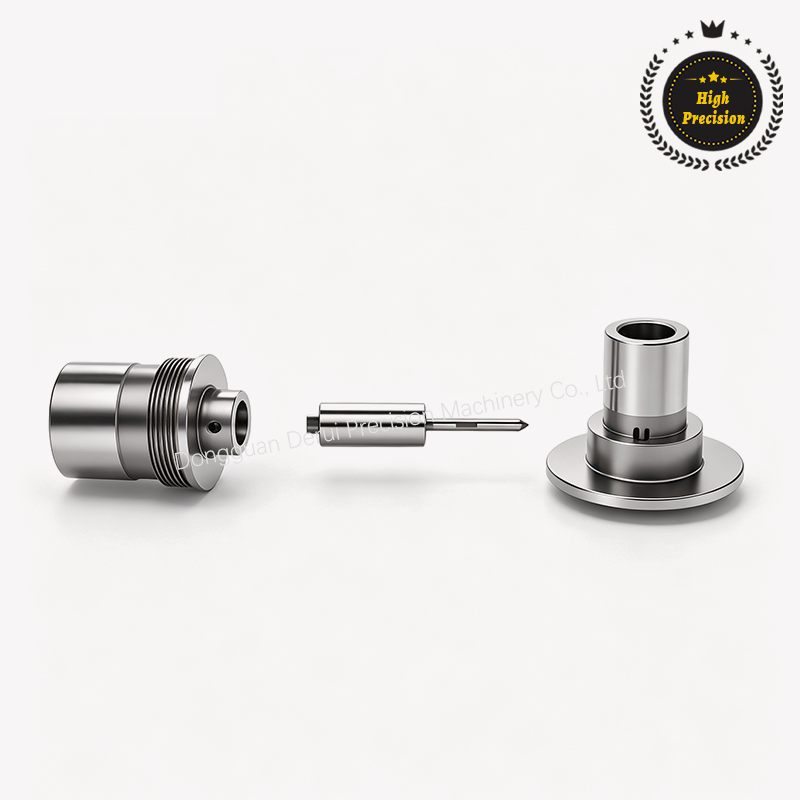

CPC-44 can alter to expanding mandrel byinstall expanding kits
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
