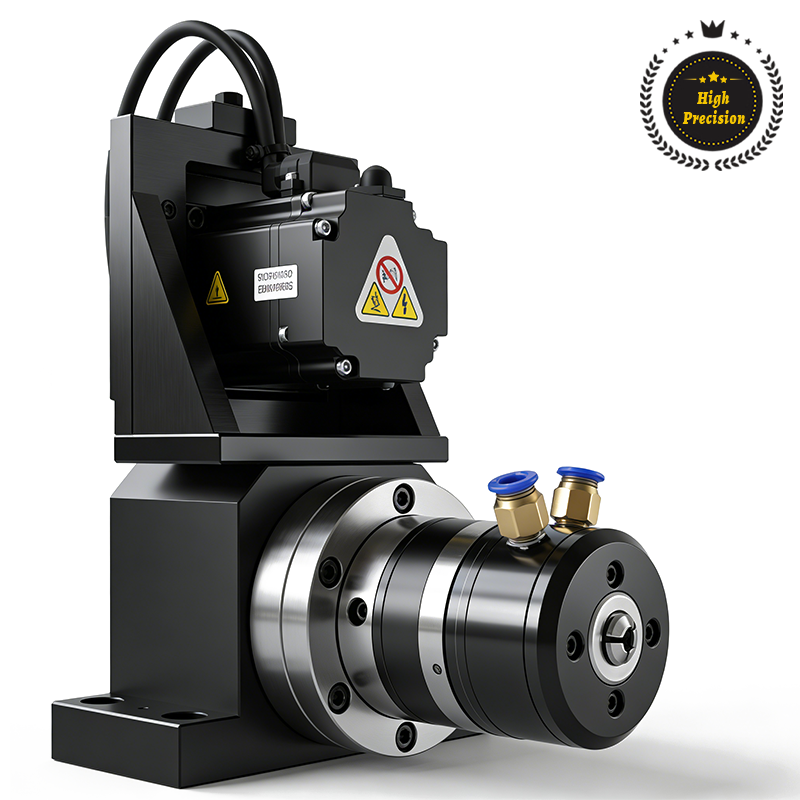

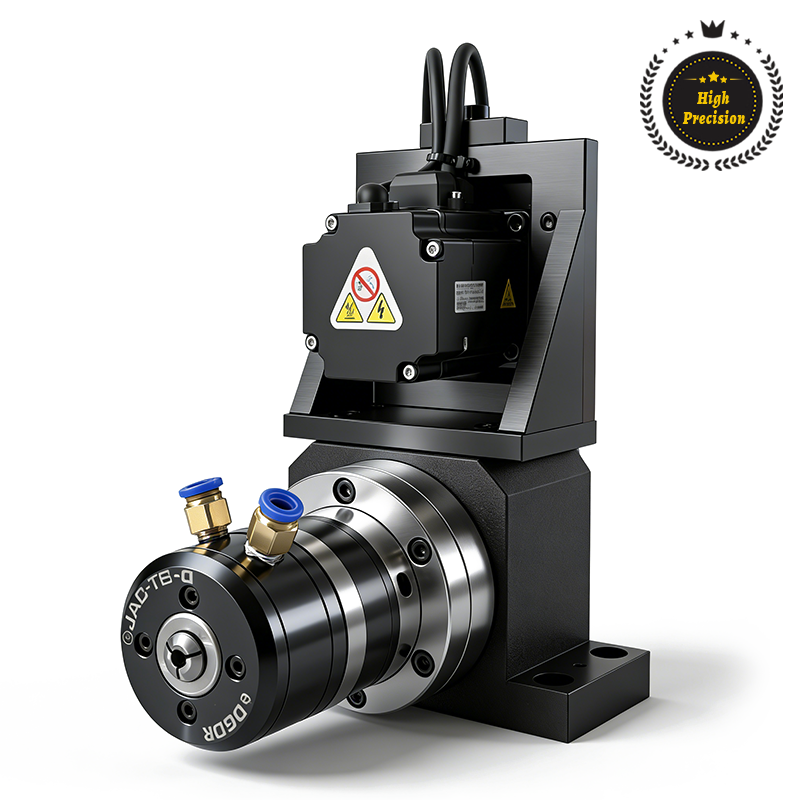

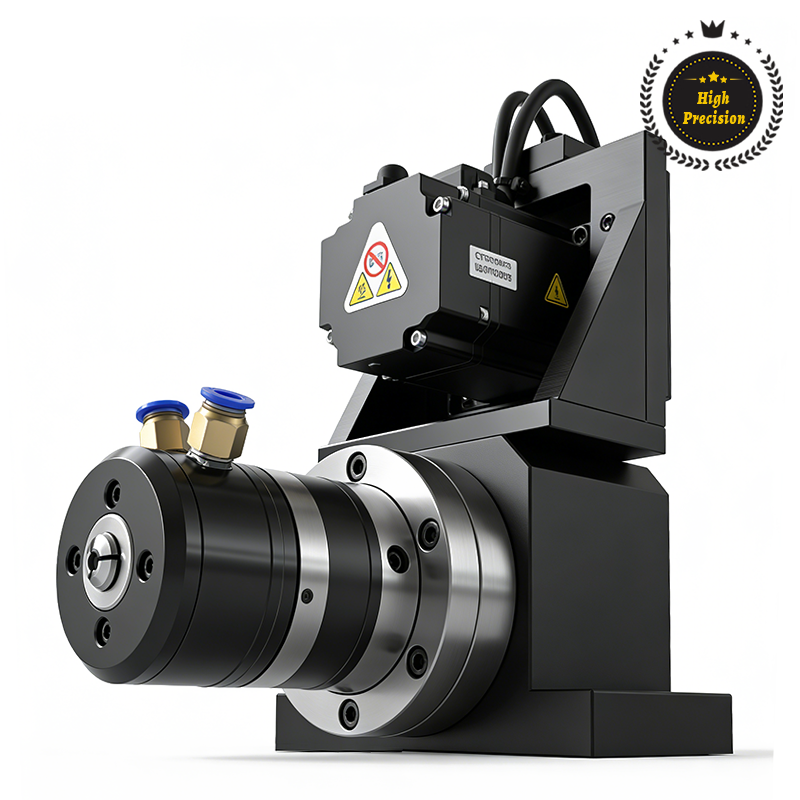

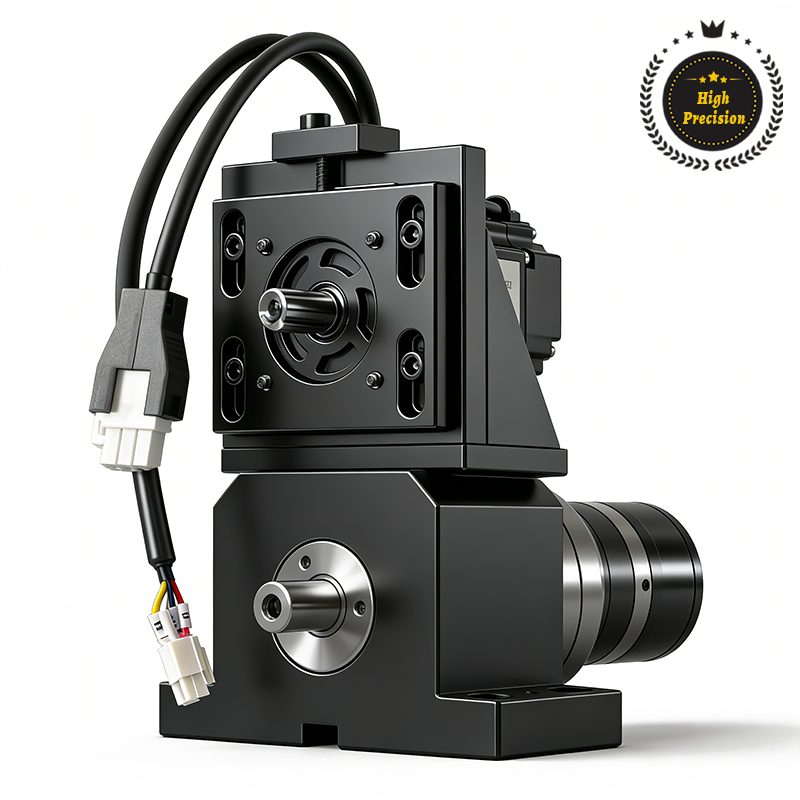

JAC-T8-D Plus DR-10

Small rotating spindle integration

High Precision

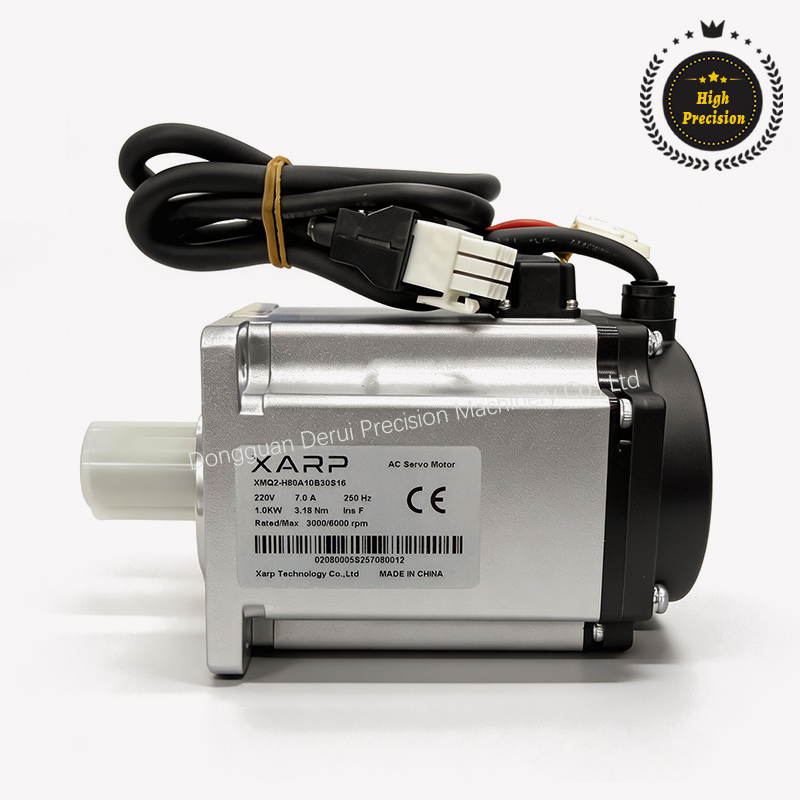

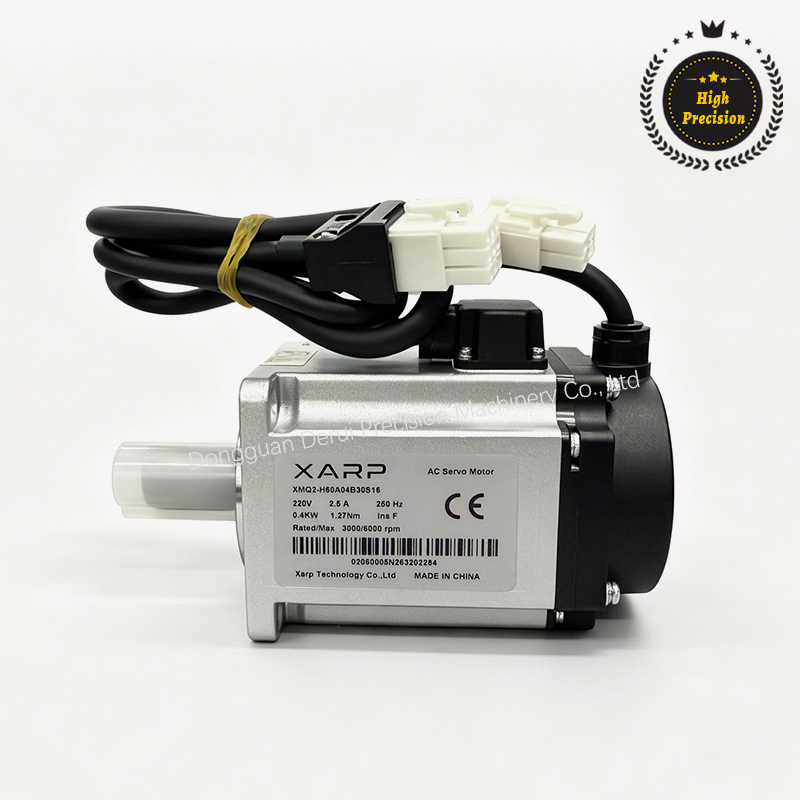

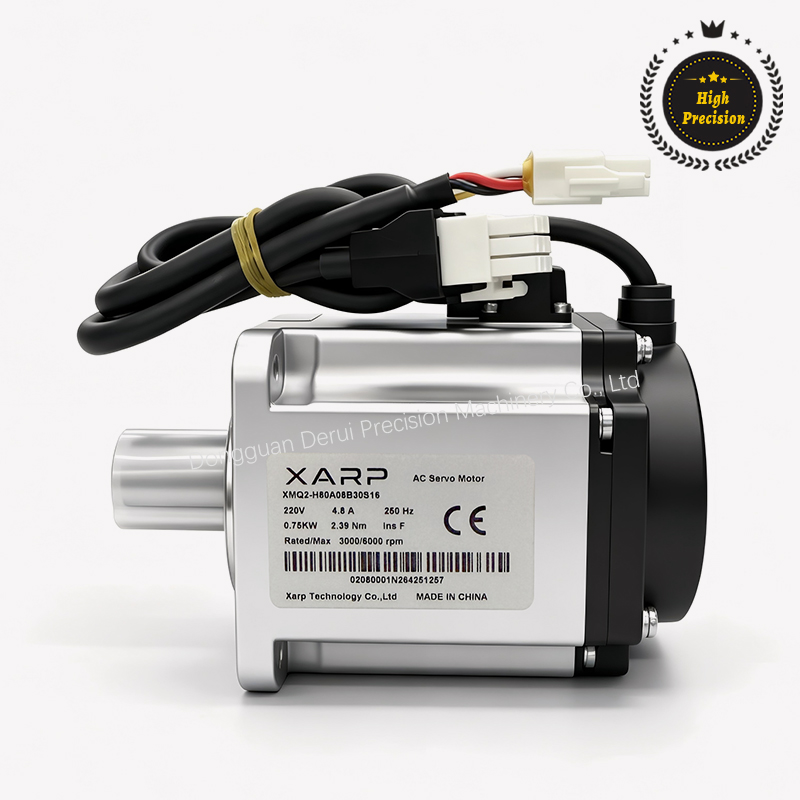

$ 1088 USDMotor price not included

Model

    No data available

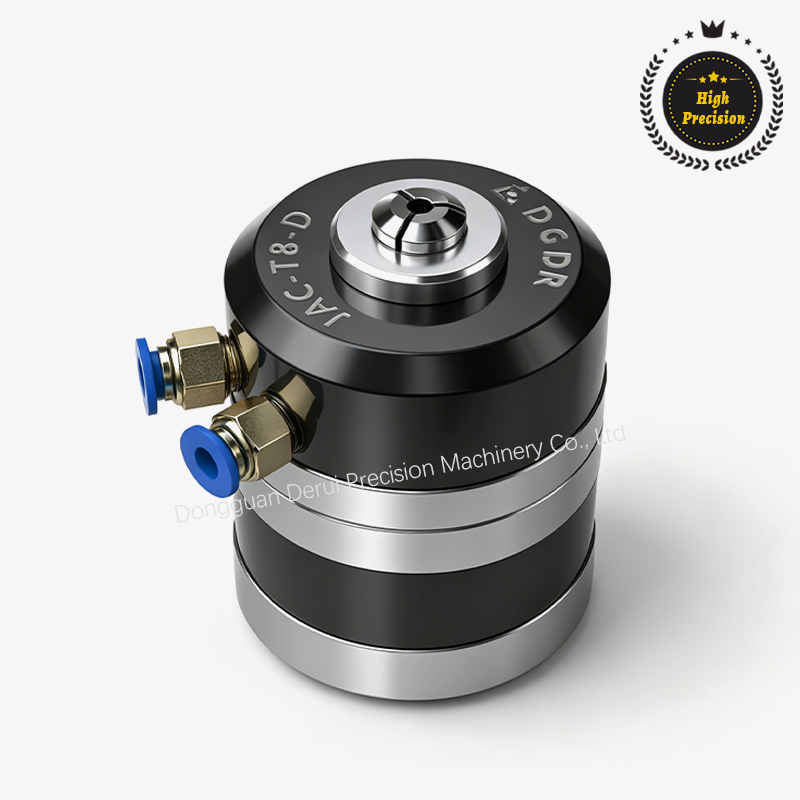

  • Small outer diameter installation, steel clamp body

  • Body accuracy within 0.01mm, repeated clamping accuracy within 0.03mm

  • The chuck contains a rotary cylinder, eliminating the need for additional installation of rotary oil cylinders/cylinders

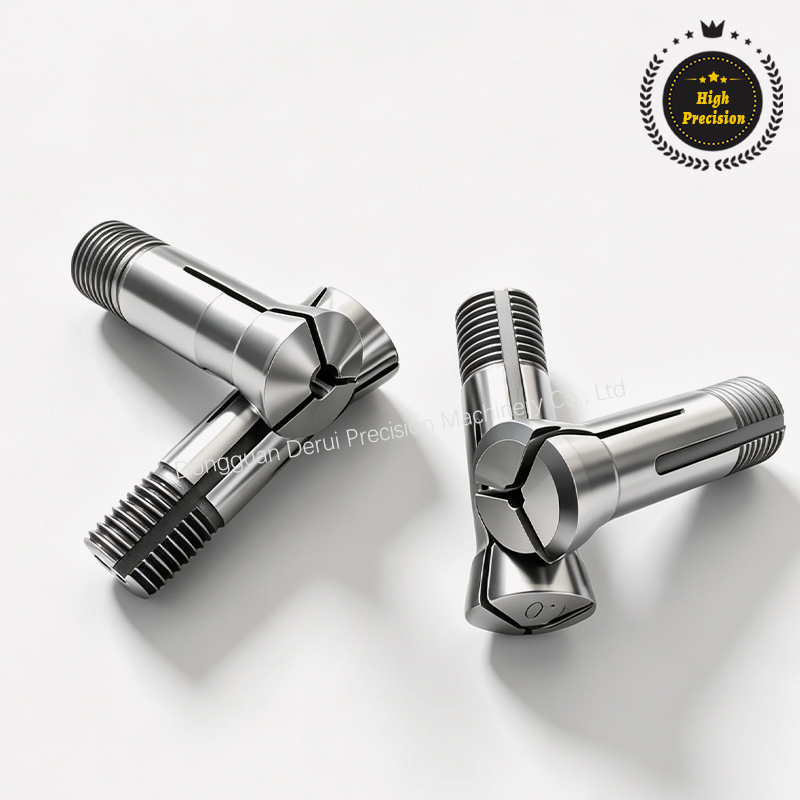

  • Central through-hole, different workpieces can be replaced with cylinder clamps

  • Working pressure 3-7kgs, dustproof and waterproof design (in inflated state)

  • Widely used in various specialized automation machines

Get Your Solution

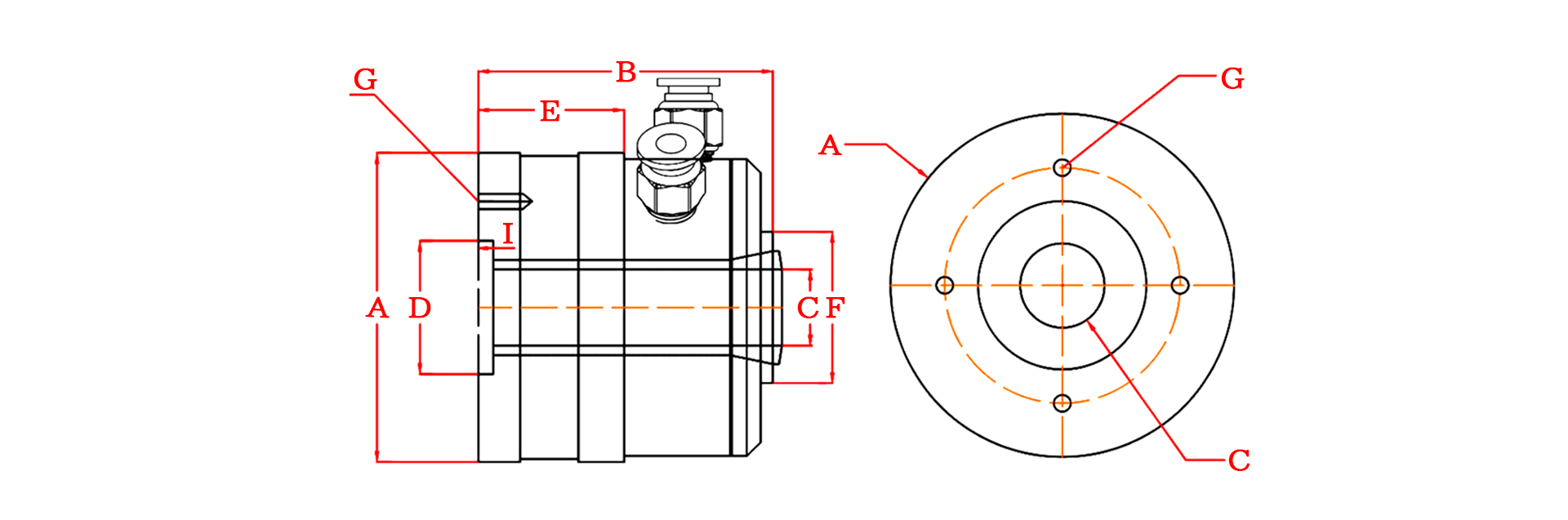

2D Drawing

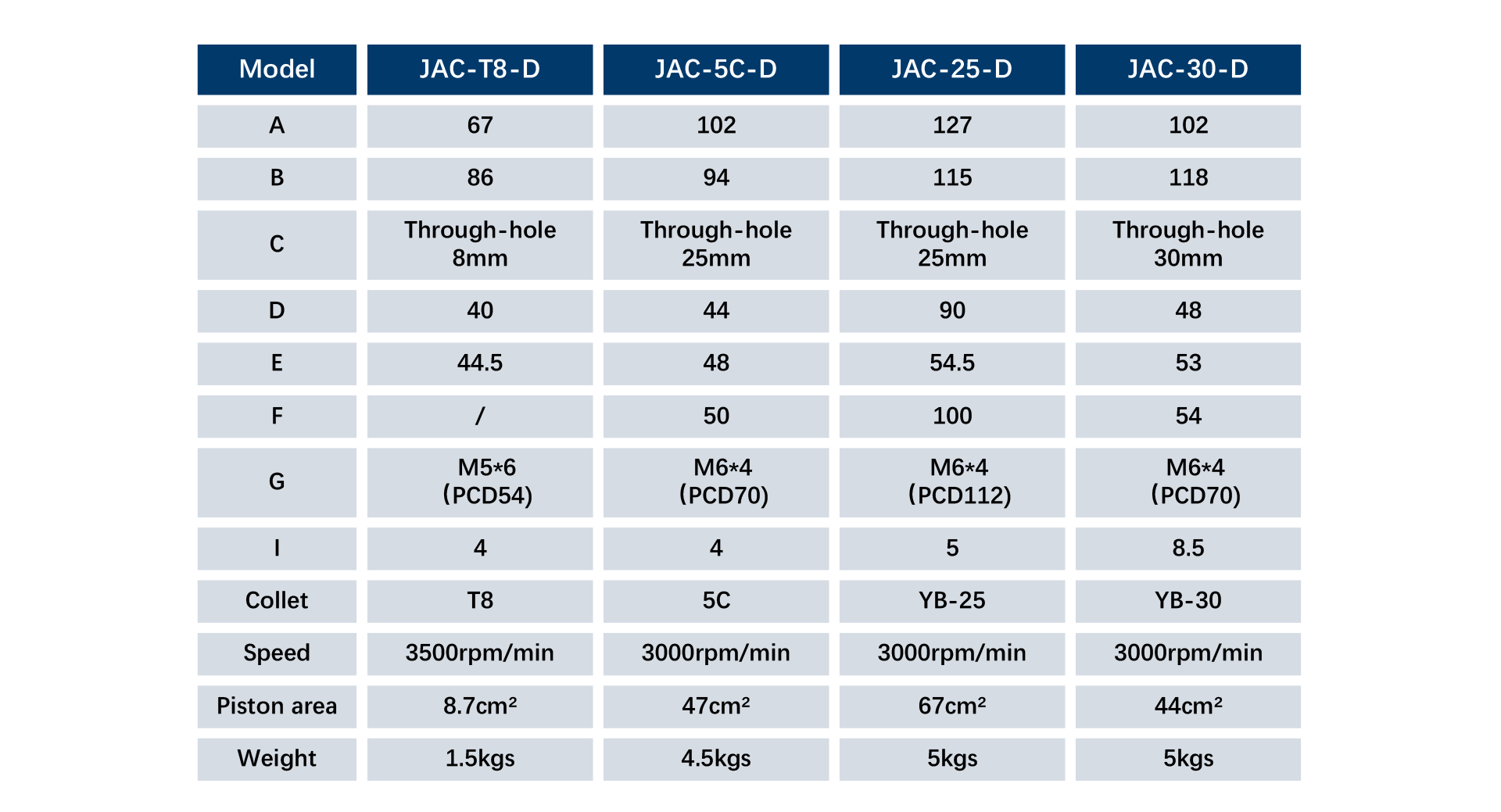

Technical Specifications (mm)


Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
