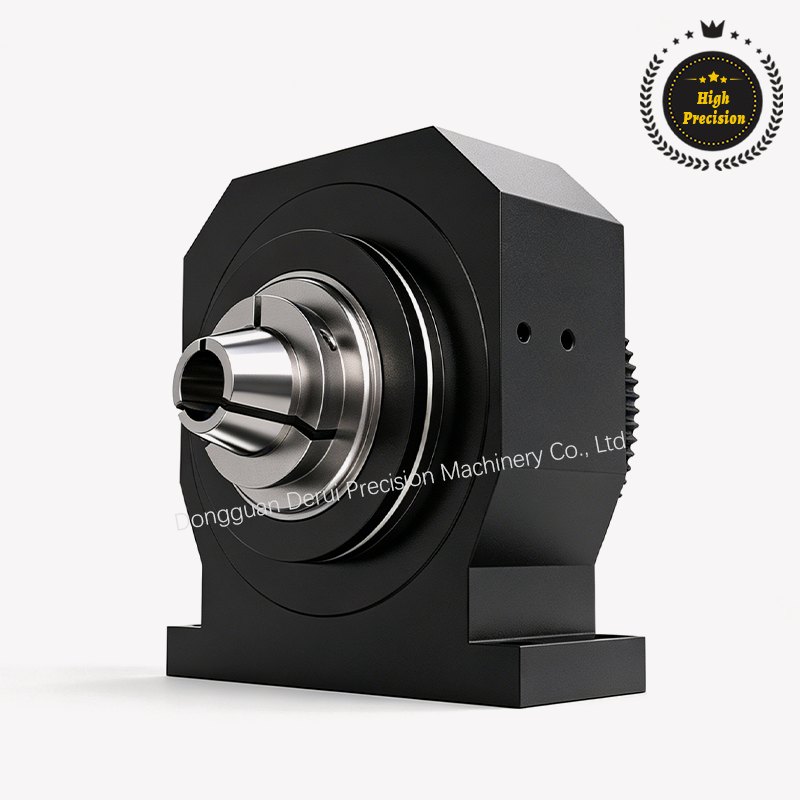

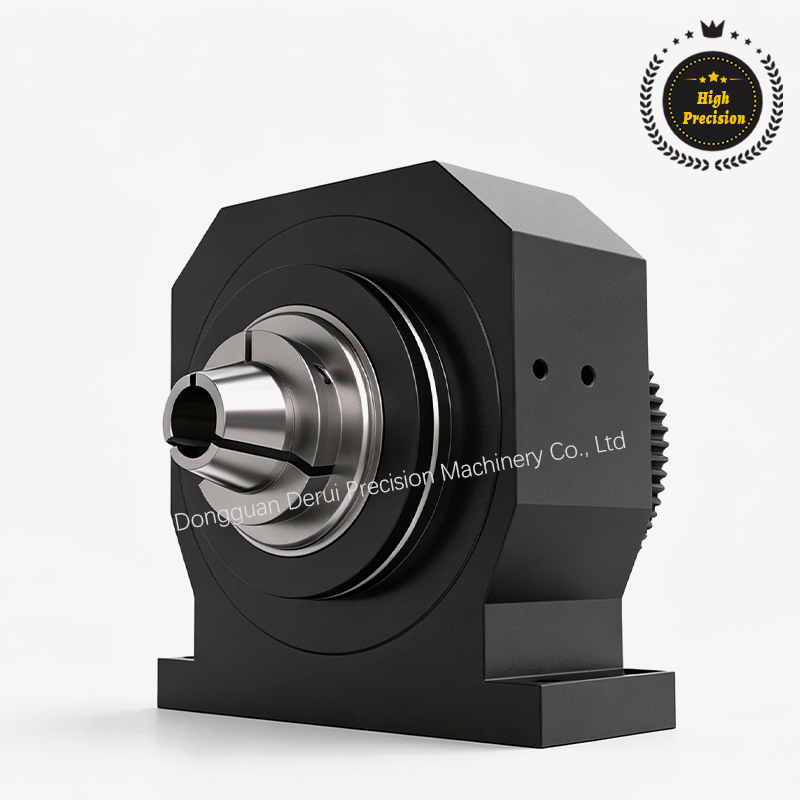

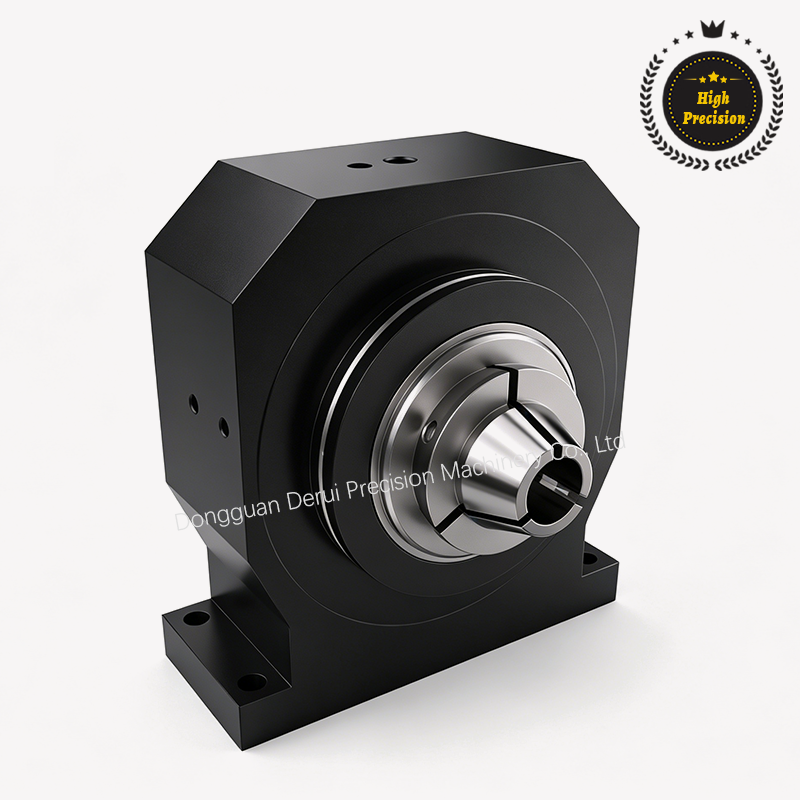

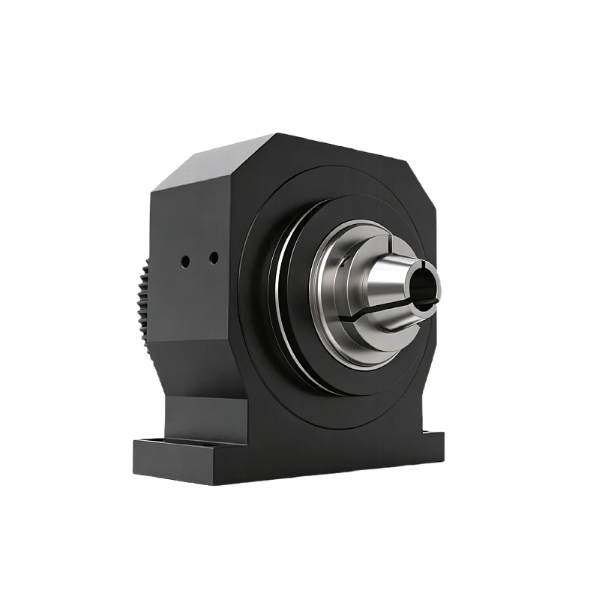

DRM Series

Rotary Pneumatic Chuck

High Precision
$ 1815 USDMotor price not included

Model

    No data available

  • Clamping Repeatability: 0.03 mm

  • Customizable Large Through-Hole (up to 500 mm)

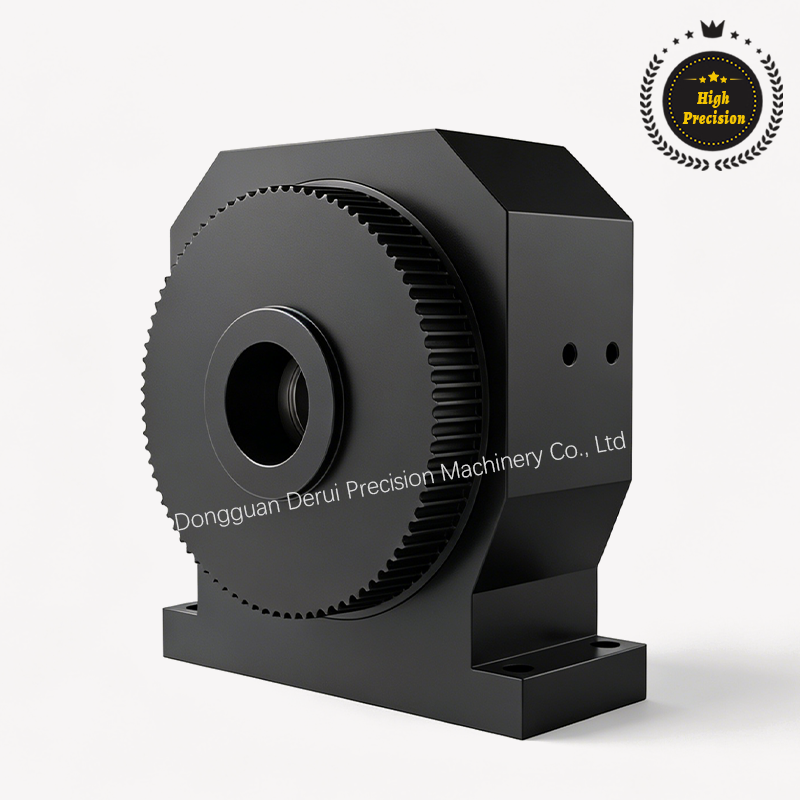

  • Motor-Driven Rotation

    (via Synchronous Pulley or Gear Drive)

  • Air Pressure: 3–8 kg/cm²; Commonly used in laser tube

    cutting machines and various automated equipment

Get Your Solution

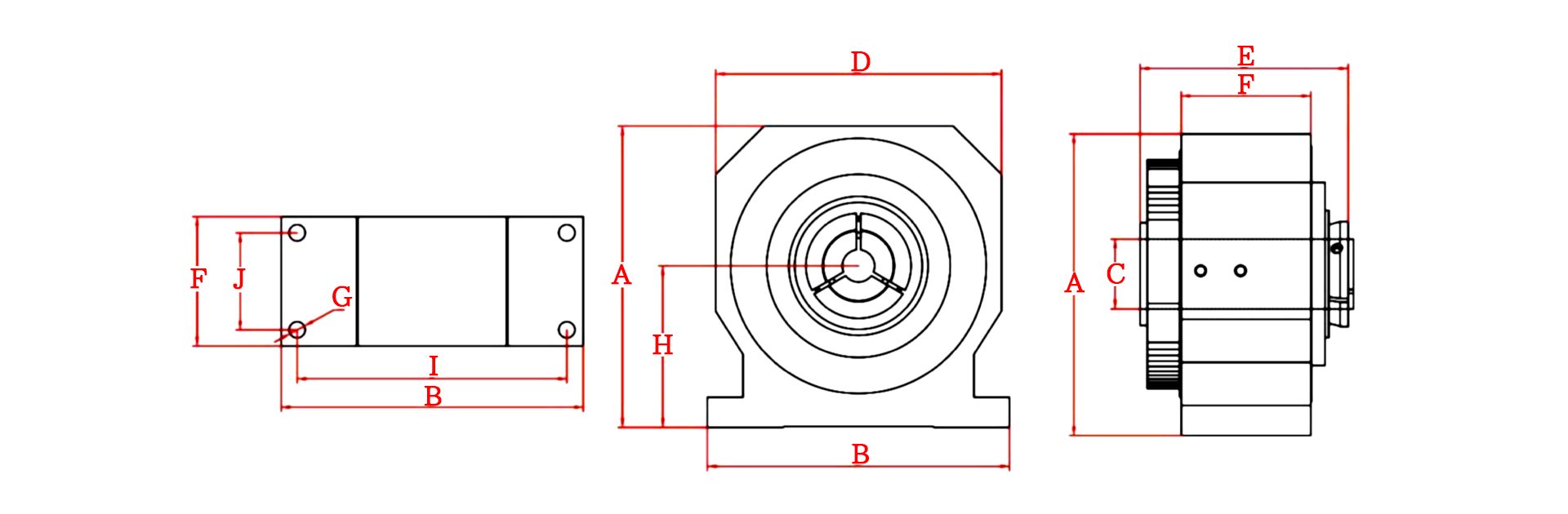

2D Drawing平面图.png

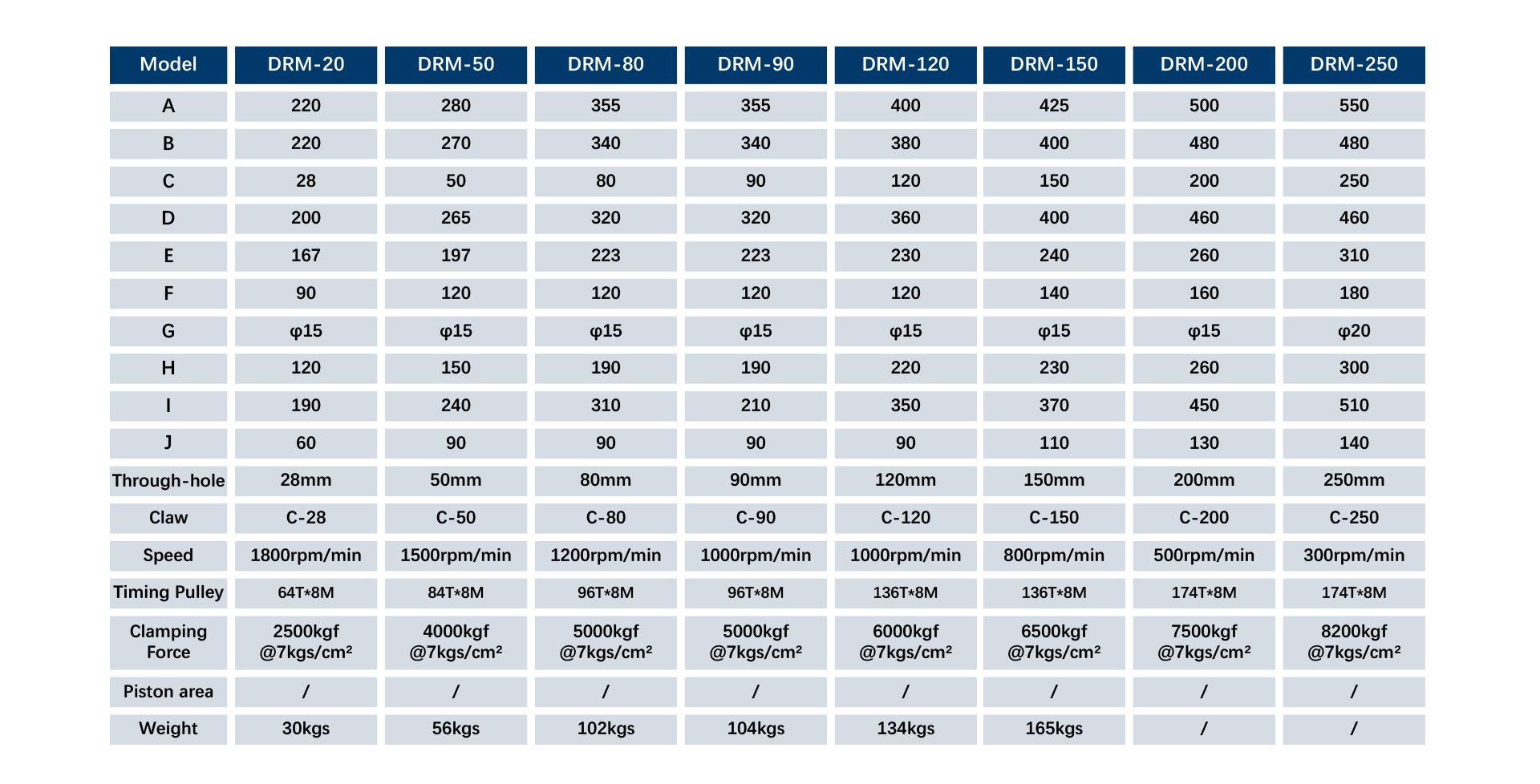

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
