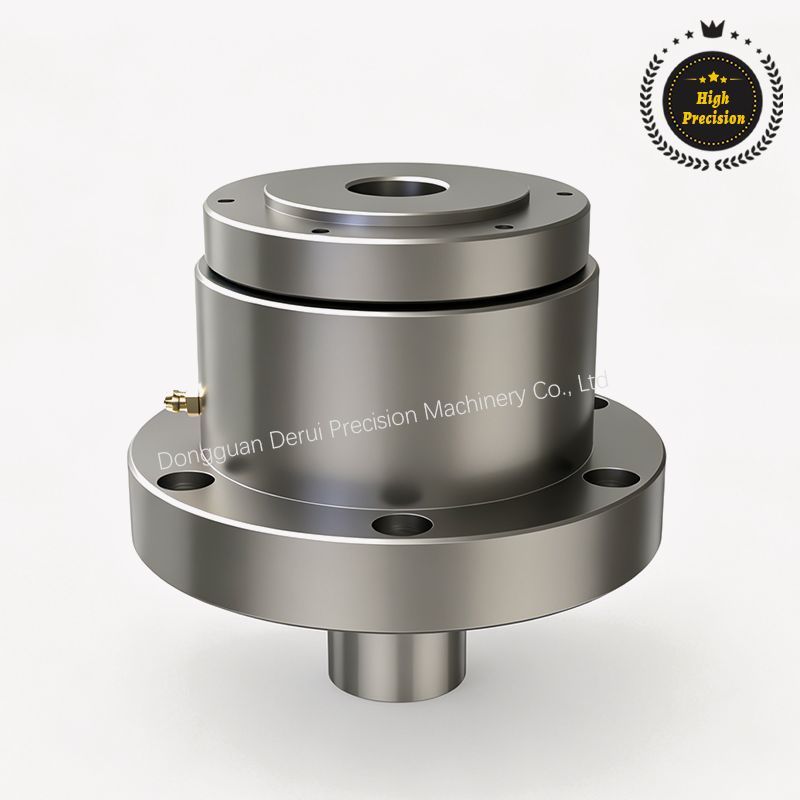

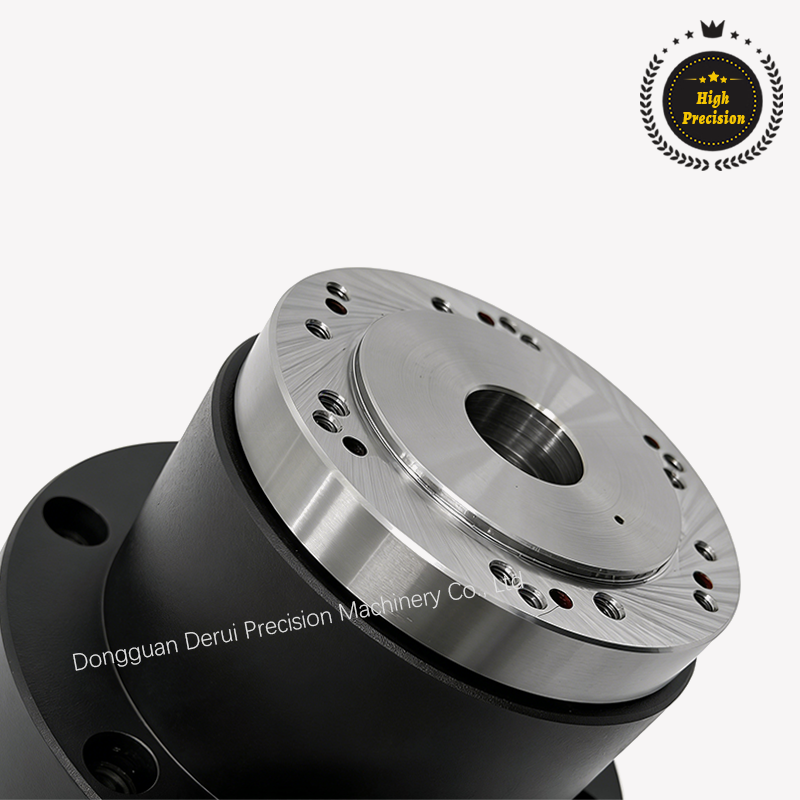

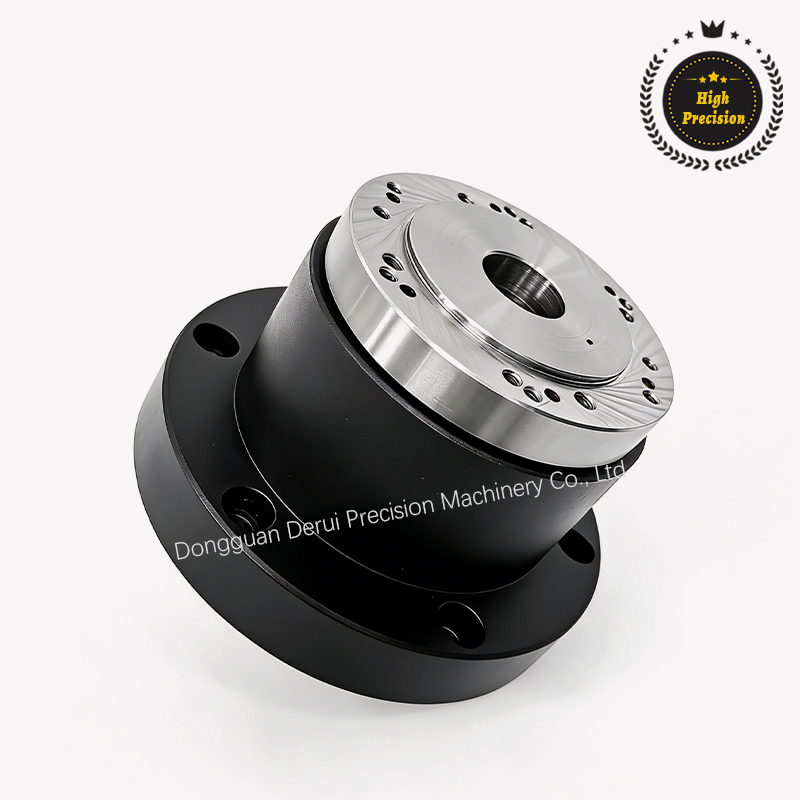

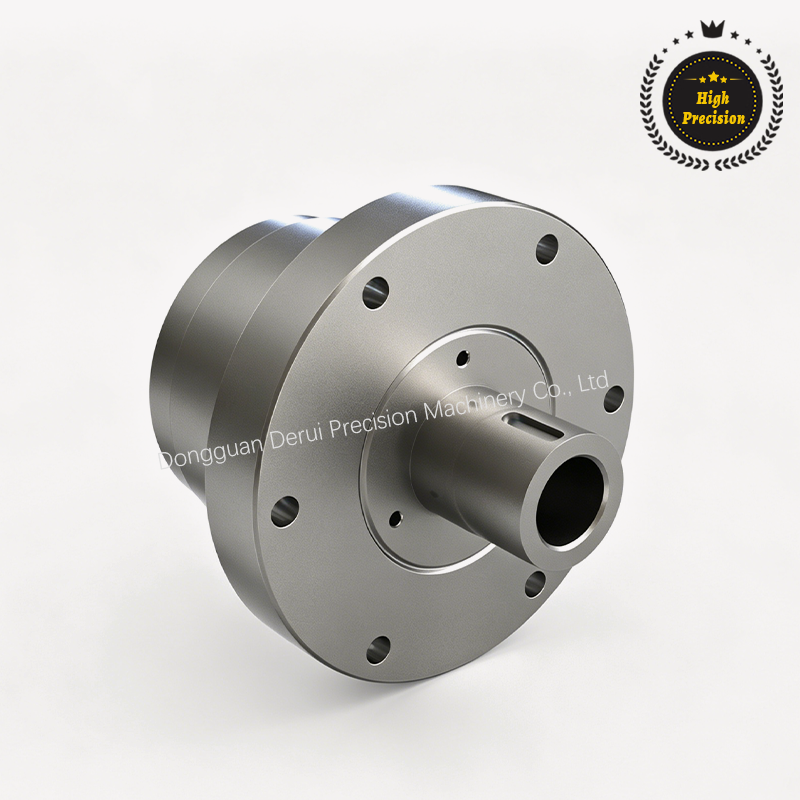

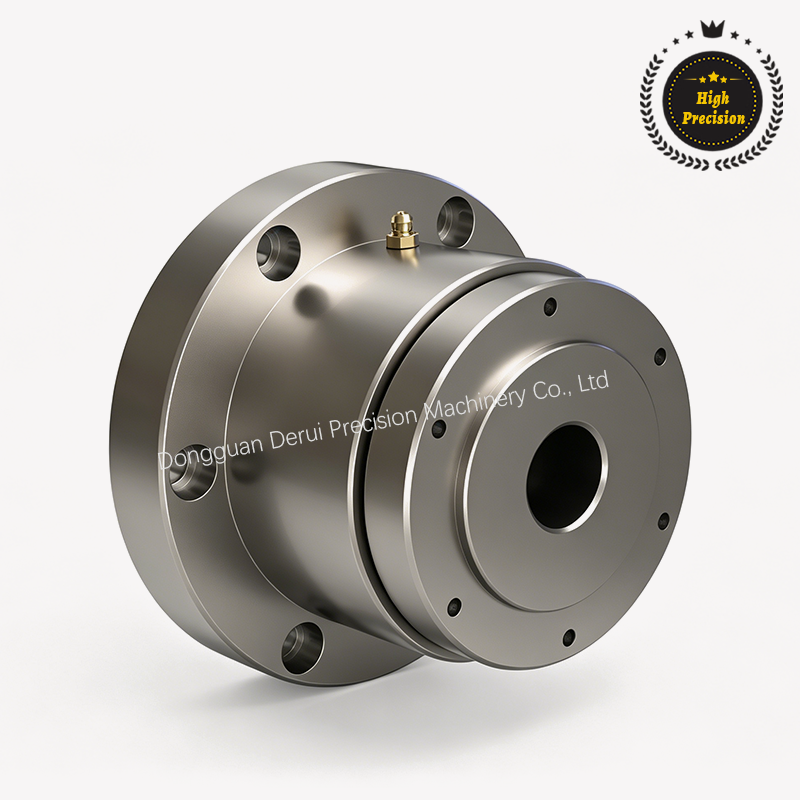

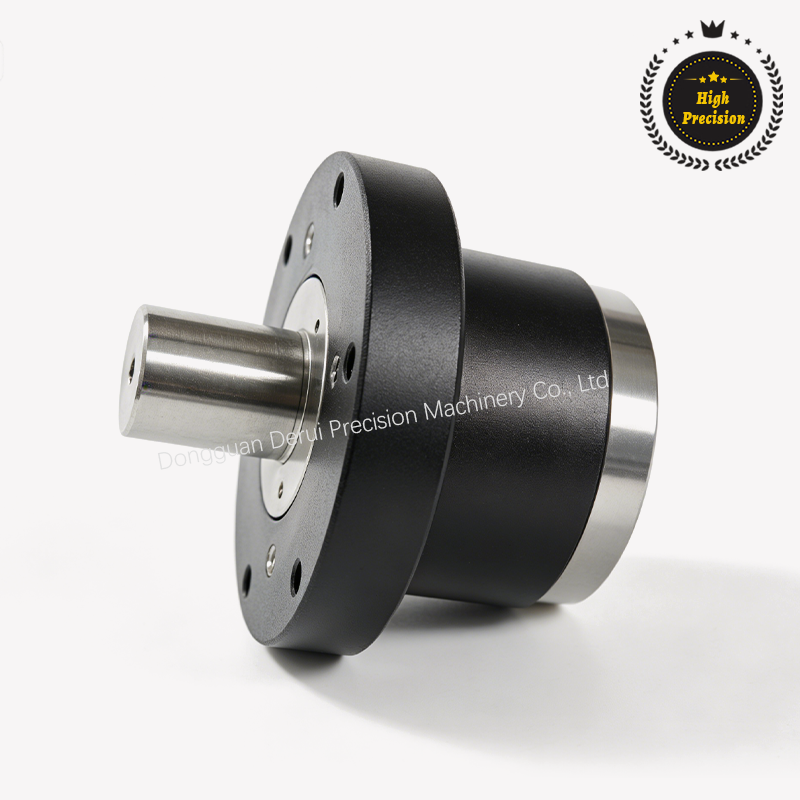

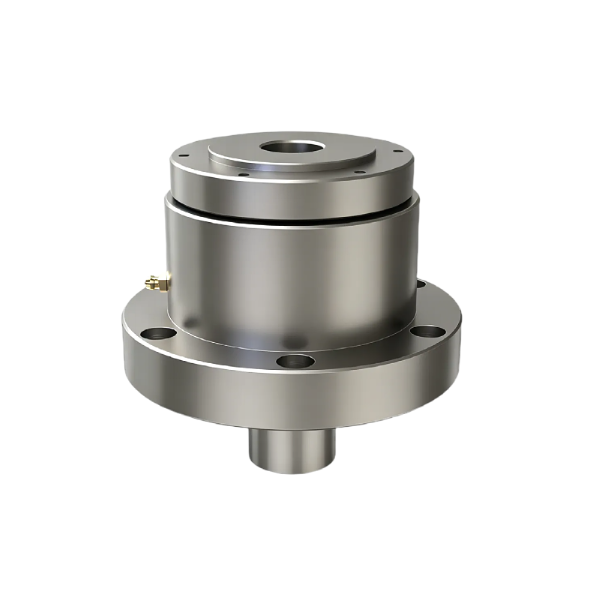

DRS Series

Rotary Spindle Integration (Vertical)

High Precision
$ 889 USDMotor price not included

Model

    No data available

  • High Precision: Spindle rotational accuracy of 0.005 mm

  • Direct-drive transmission via synchronous pulleys, gears, or servo motors

  • Compatible with various chucks, suitable for application across a wide range of

    high-precision machining fields

Get Your Solution

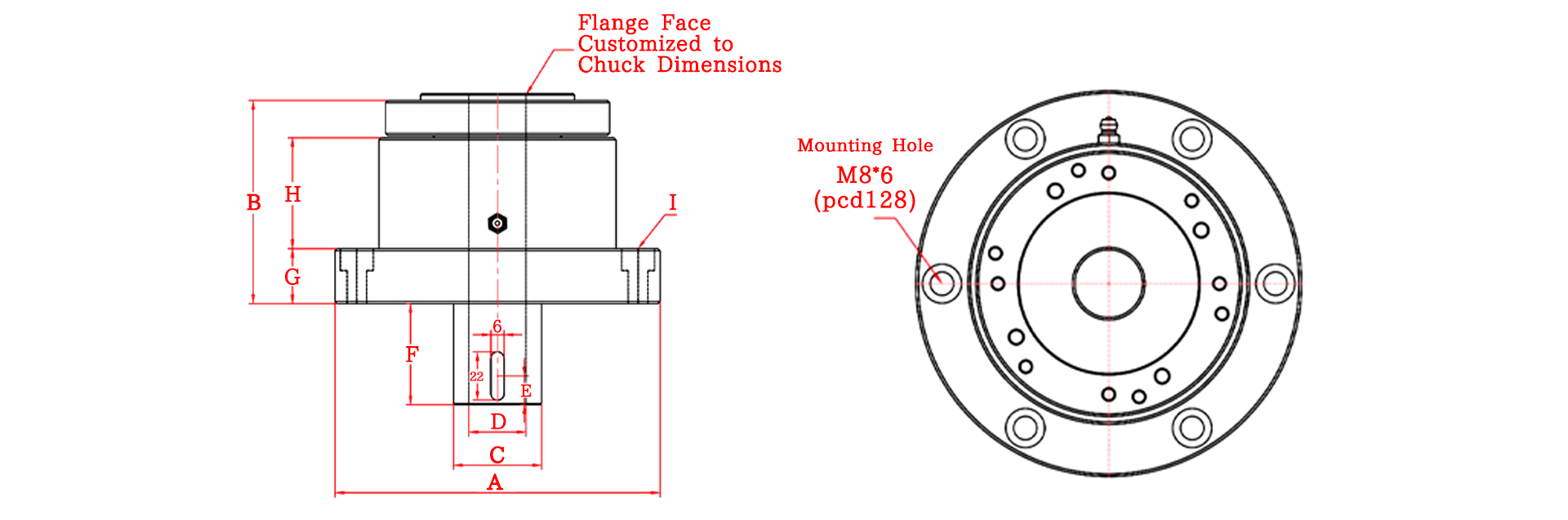

2D Drawing平面图.png

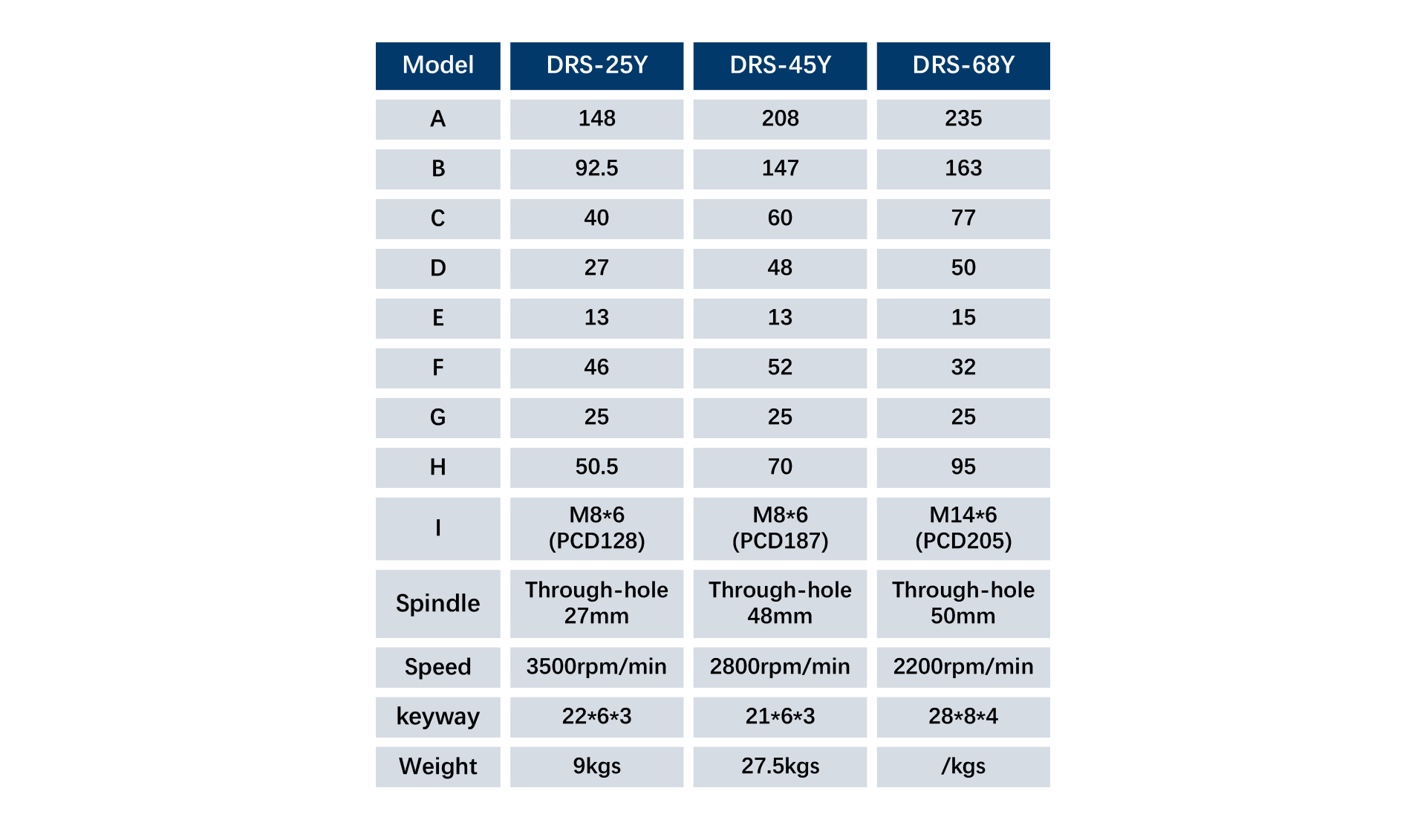

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

    No data available

Document DownloadPDF Format

    No data available

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
