DRU Series

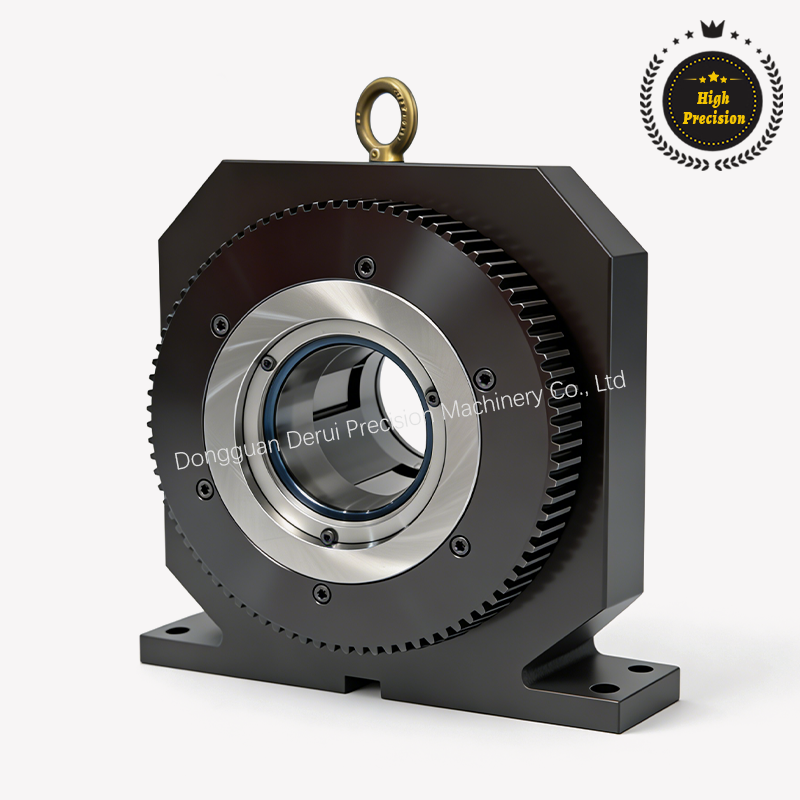

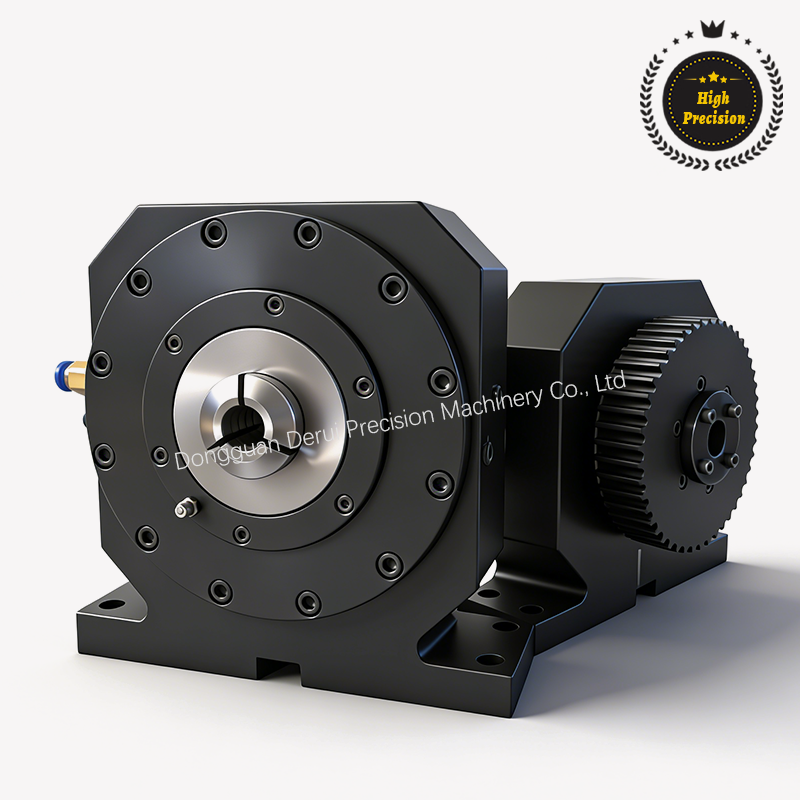

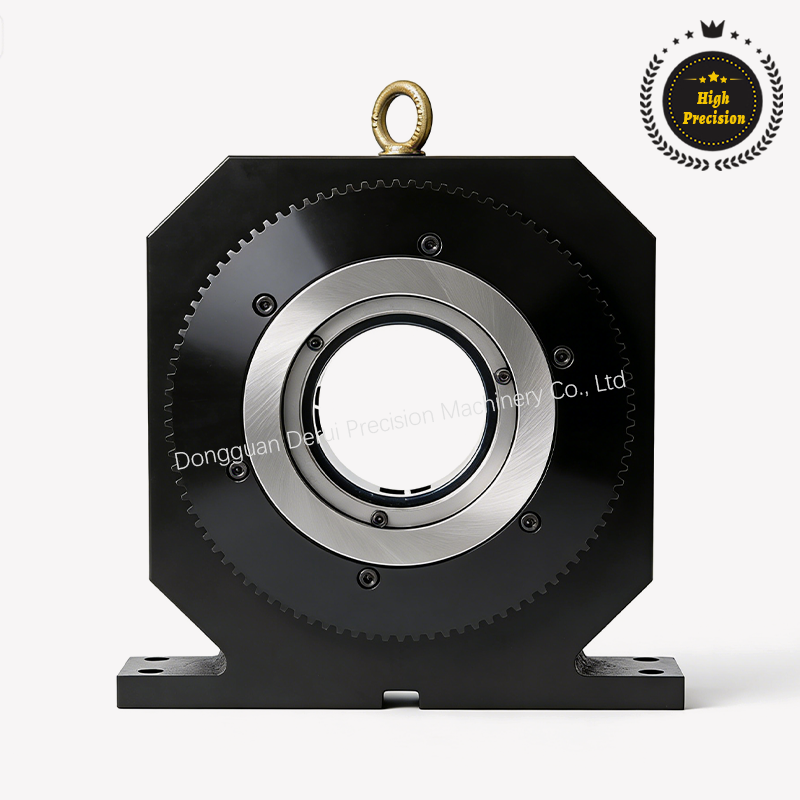

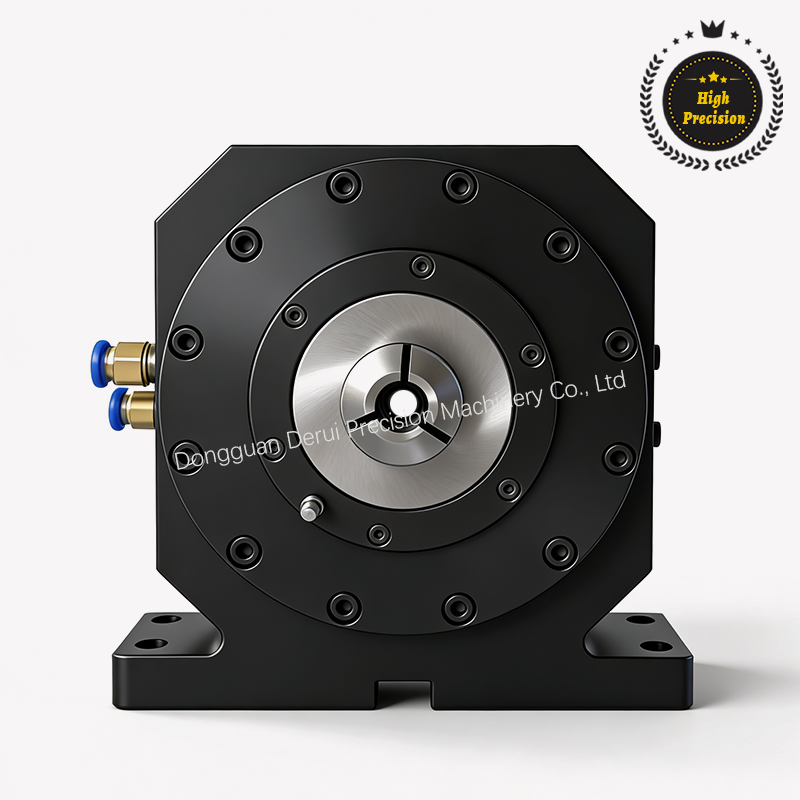

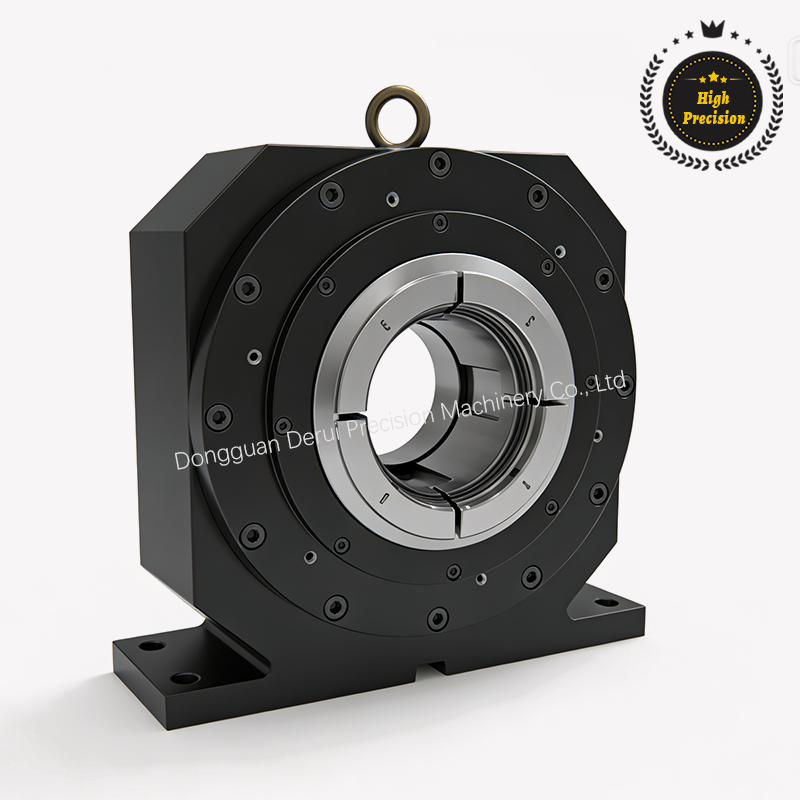

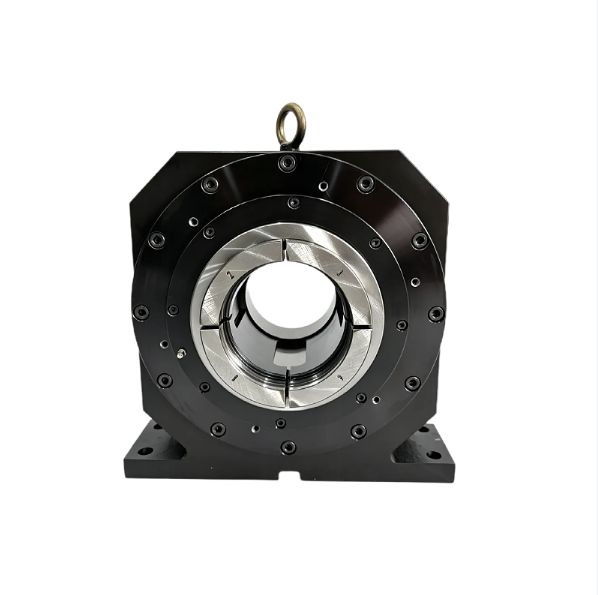

Spindle Housing (Cartidge clip)

High Precision
$ 1445 USDMotor price not included

Model

    No data available

  • The spindle width can be customized according to the workpiece length,

    with a clamping repeatability within 0.025mm.A precision of 0.005mm can

    be customized rotation is driven by a motor and synchronous pulley

    high-speed spindle can be customized, with air pressure of 3-8 kgs/cm²

    Suitable for various high-precision lathe machining and special-purpose

    machining applications

Get Your Solution

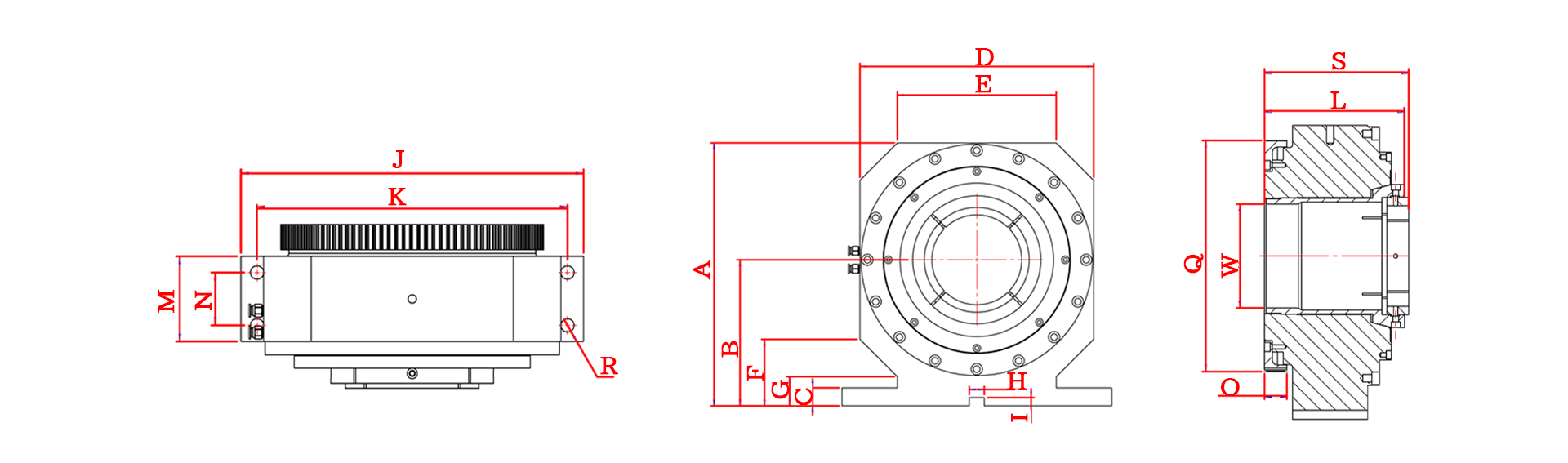

2D Drawing平面图.png

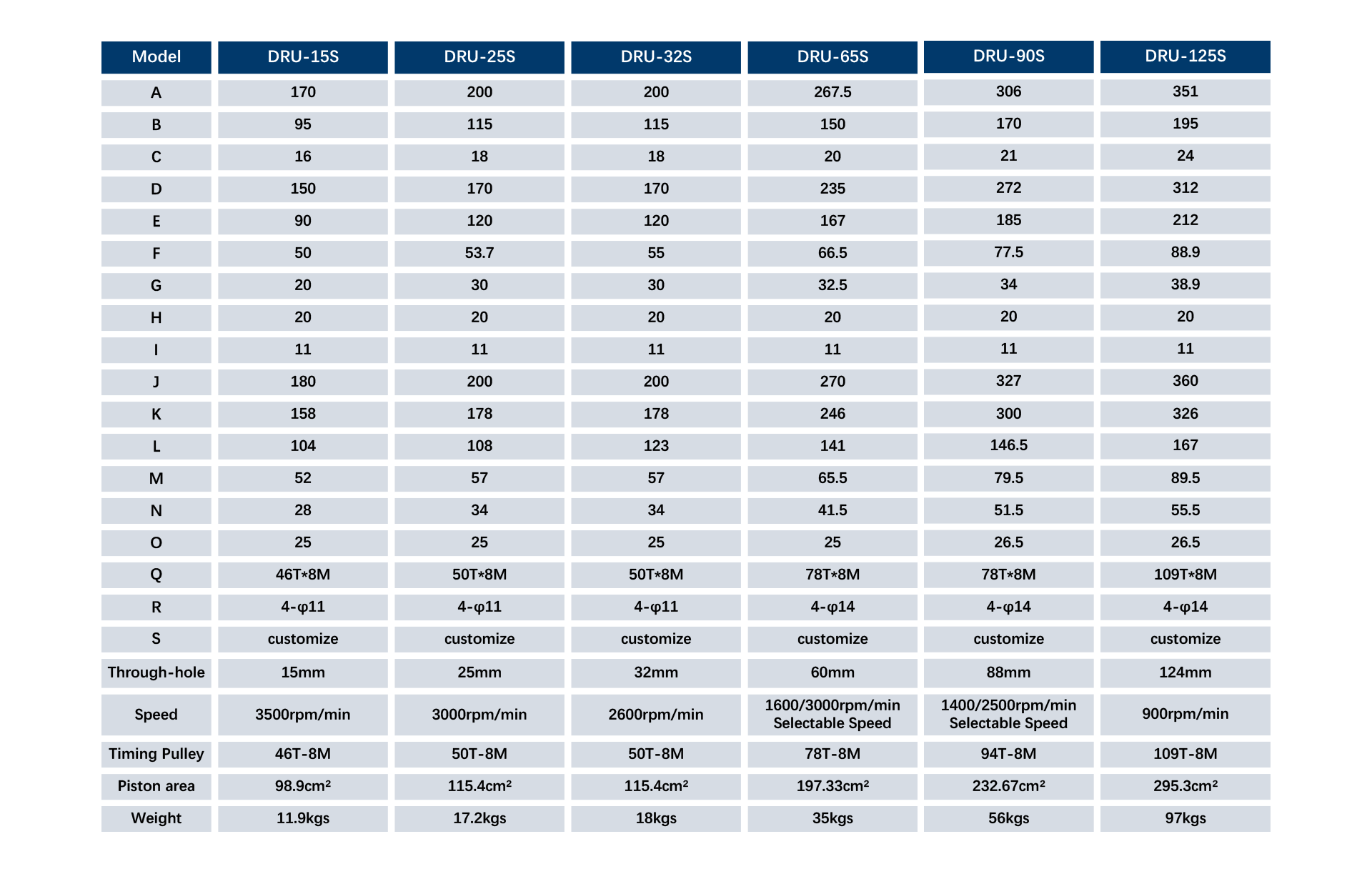

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
