GAL-15-D2

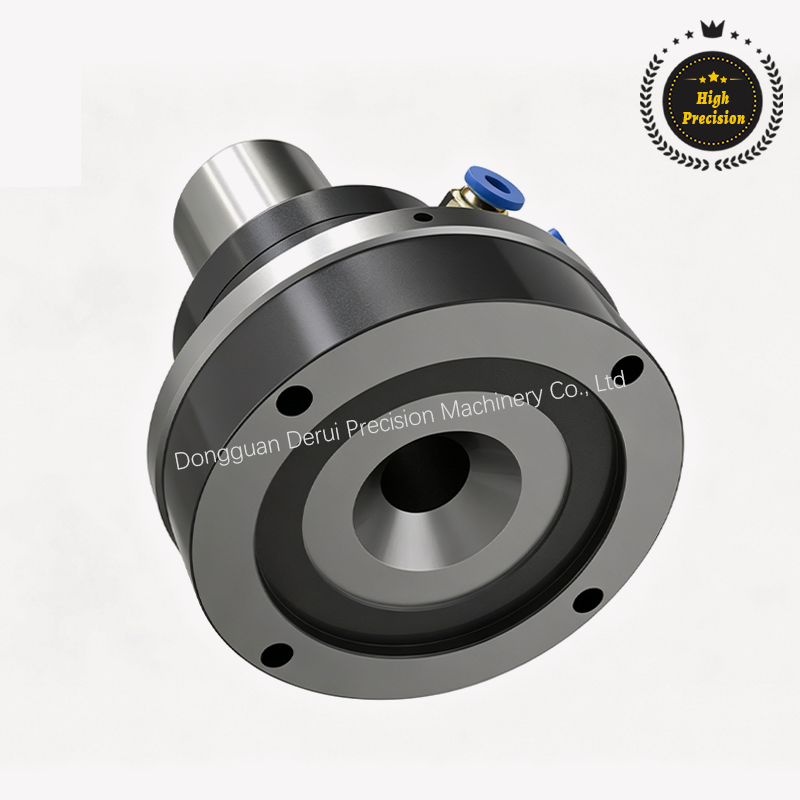

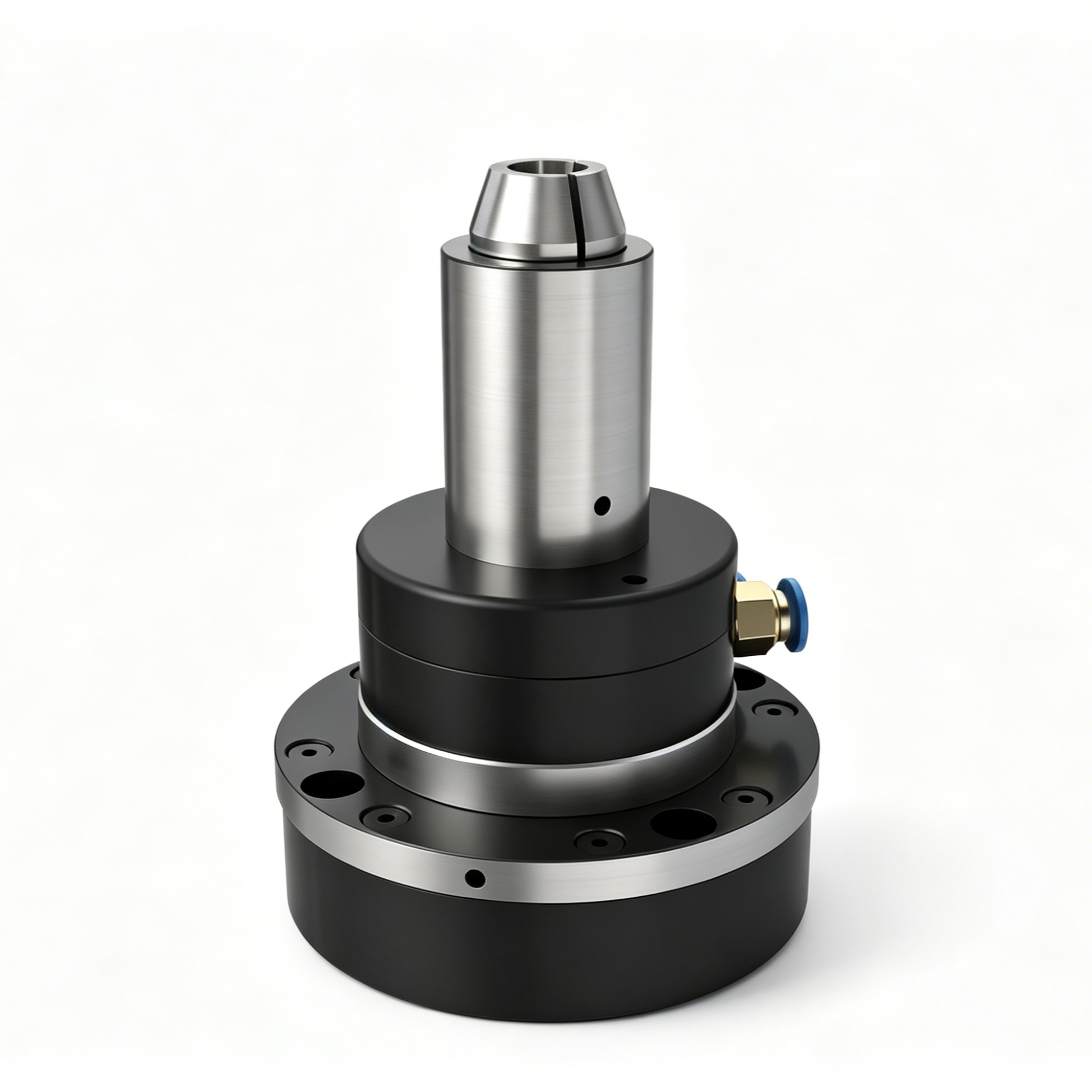

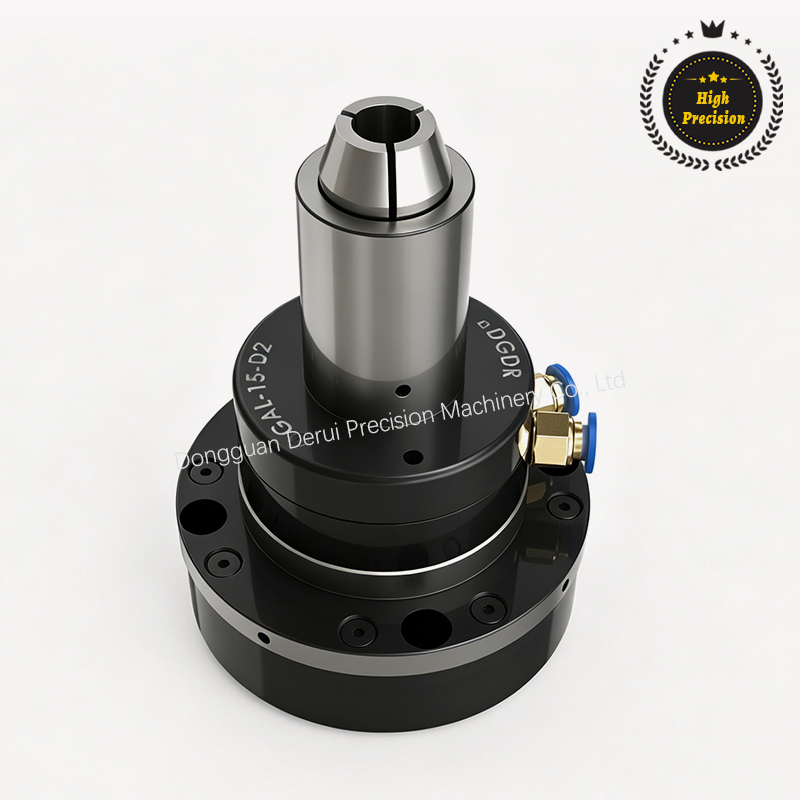

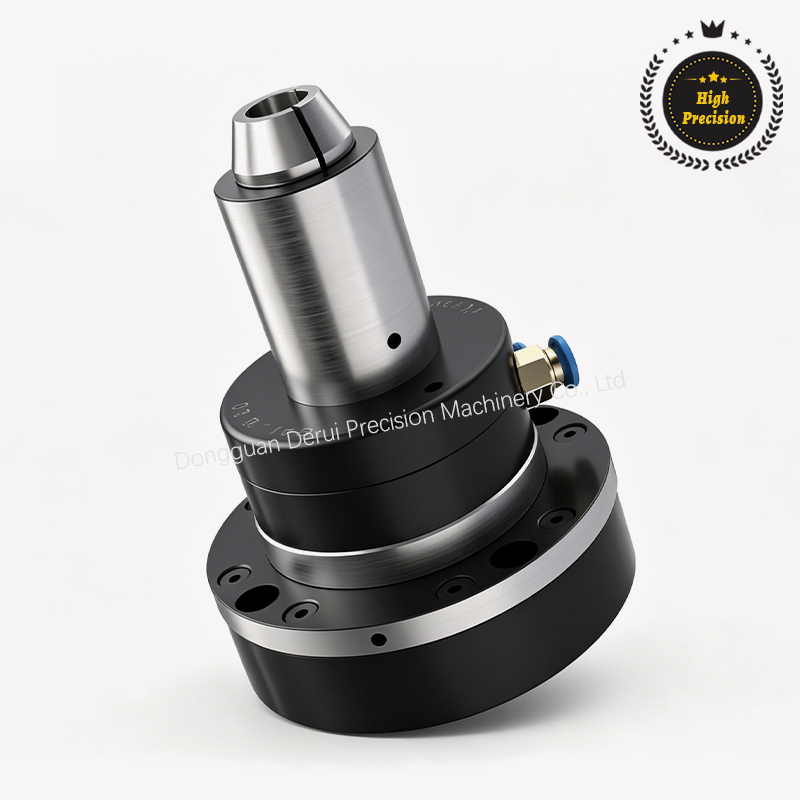

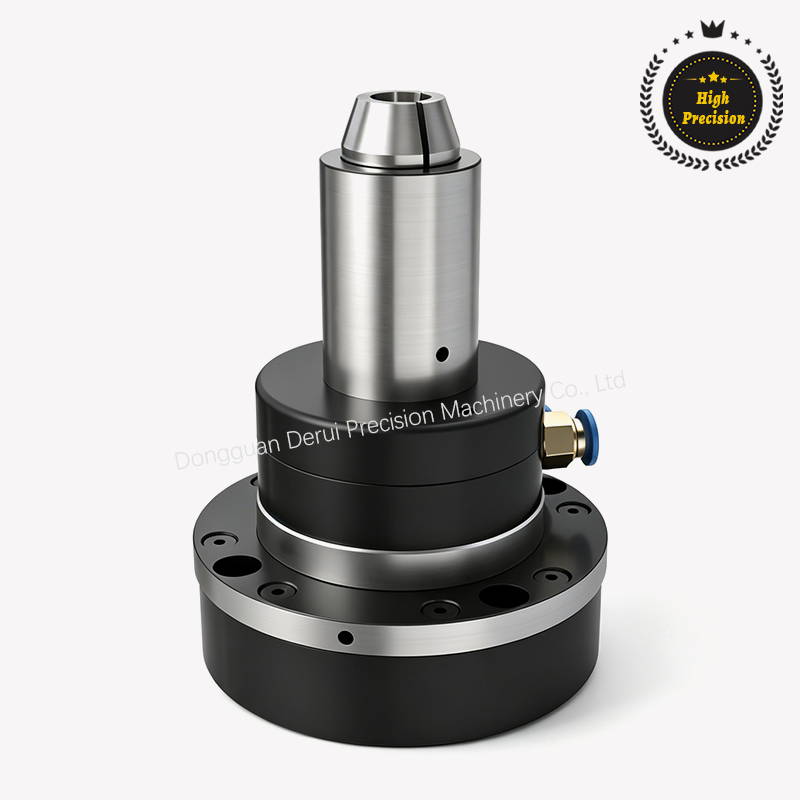

Pneumatic Rotary Chuck
High Precision
$ 894 USDMotor price not included

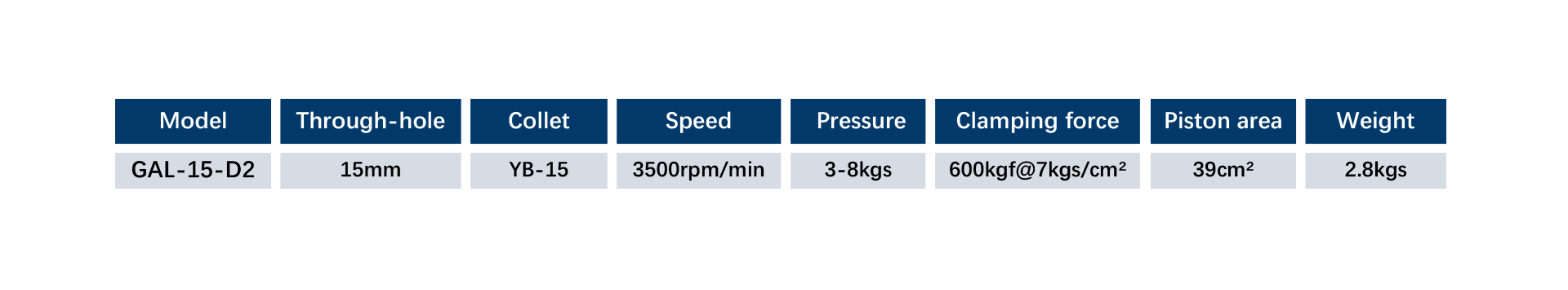

Model
DGDR GAL-15-D2
Steel collet body, offering a long service life
High precision, the accuracy is within 0.002mm
Repeatable Clamping Accuracy: 0.005 mm
No additional cylinders required
Dustproof and Waterproof (When Inflated)
Widely used in various high-precision grinding machines, four-axis, five-axis and other precision
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.

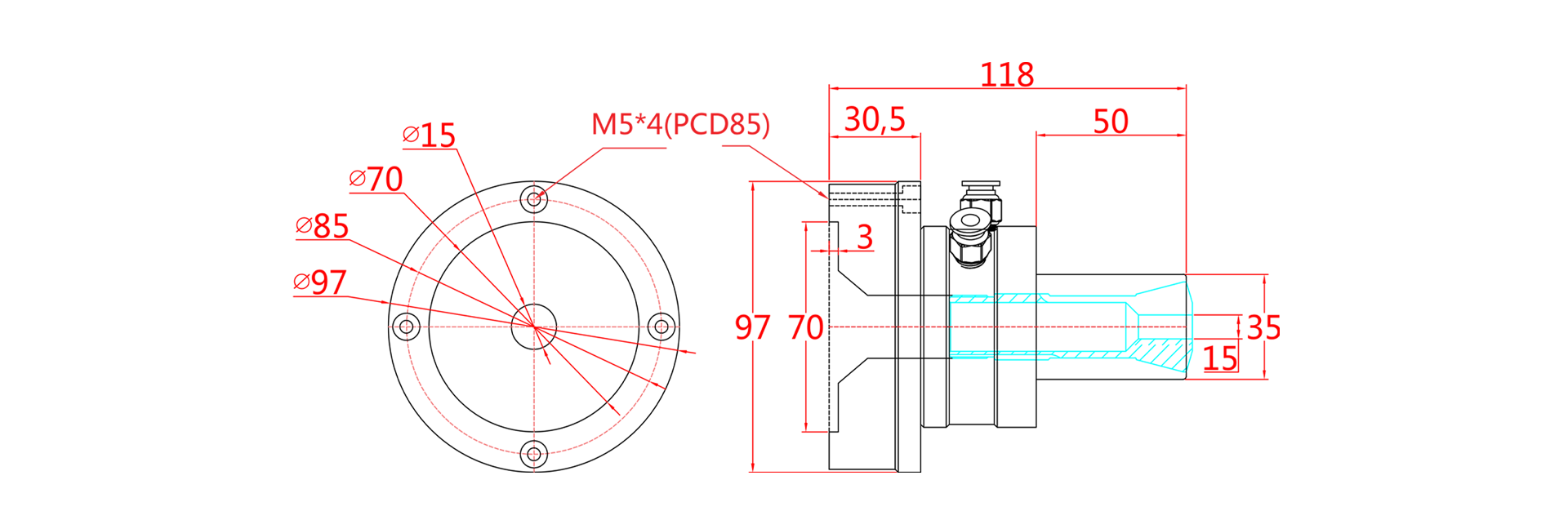

STEP Format
