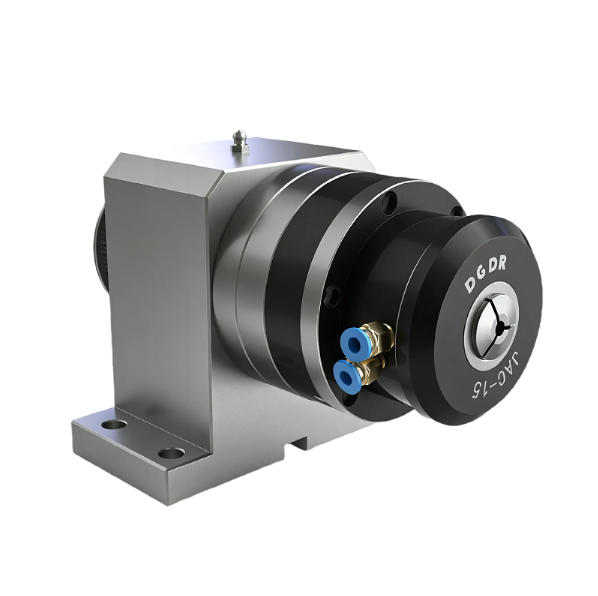

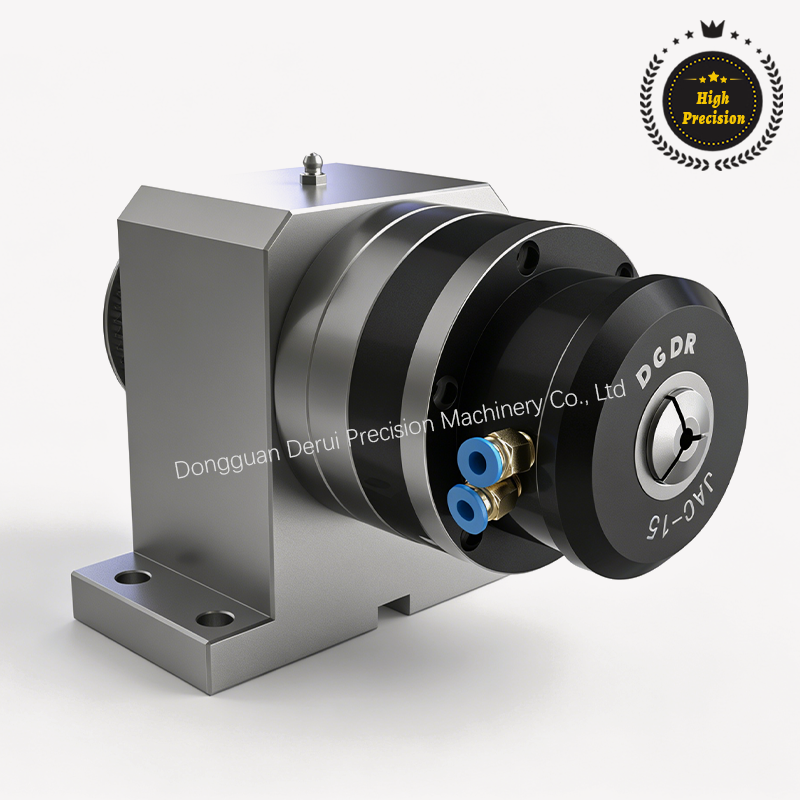

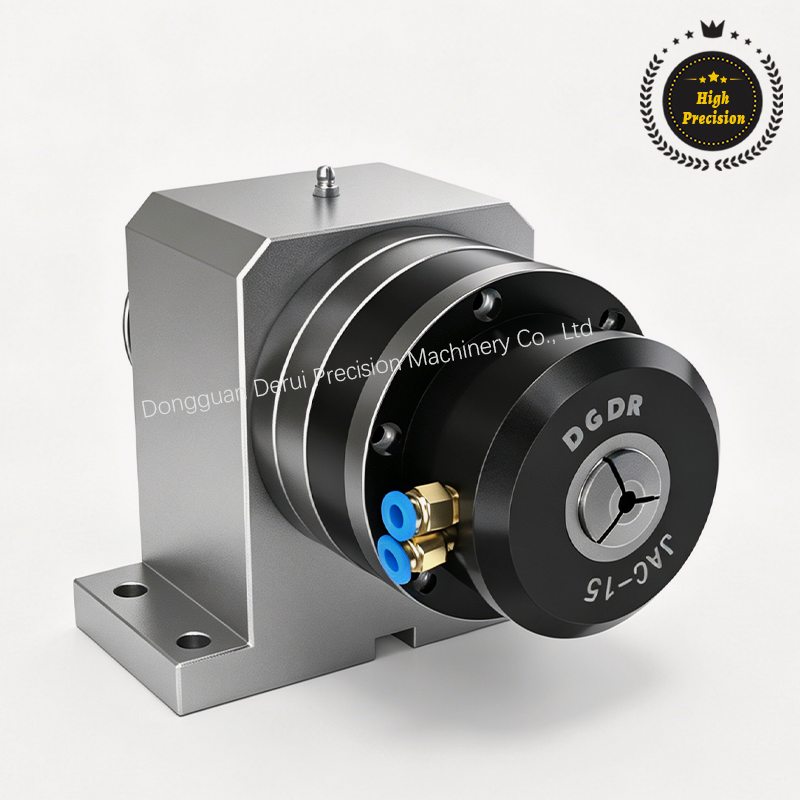

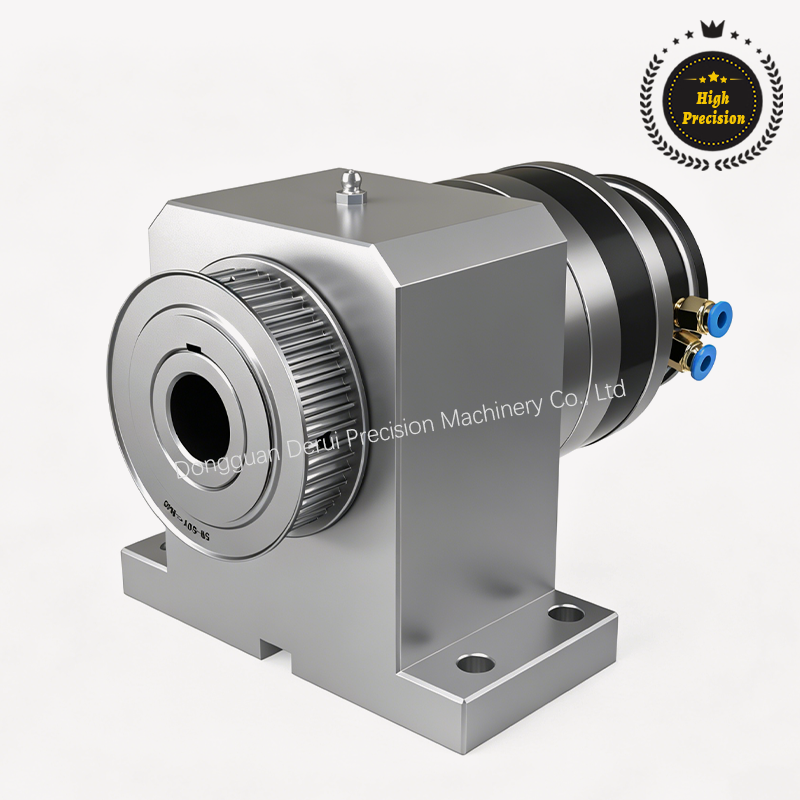

JAC Plus DR Series

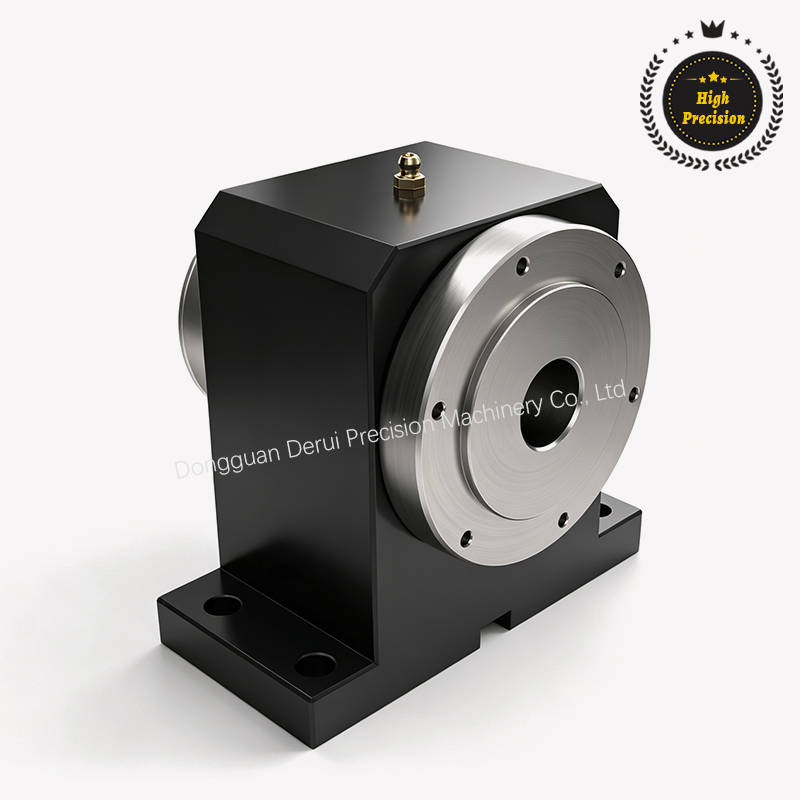

Small Spindle Integration
High Precision
$ 996 USDMotor price not included

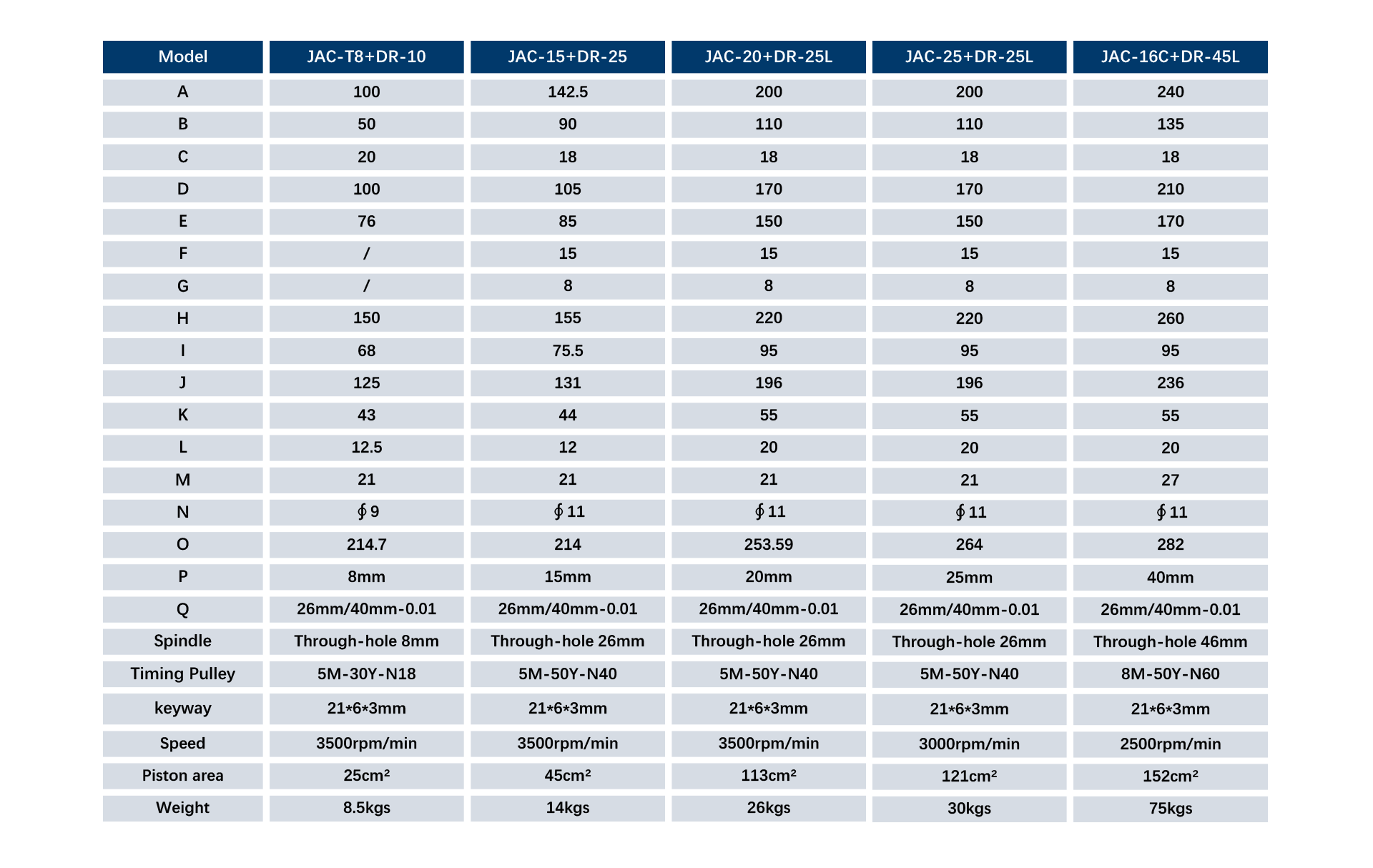

Model
DGDR JAC-T8+DR-10
DGDR JAC-15+DR-25
DGDR JAC-20+DR-25L
DGDR JAC-25+DR-25L
DGDR JAC-16C+DR-45L

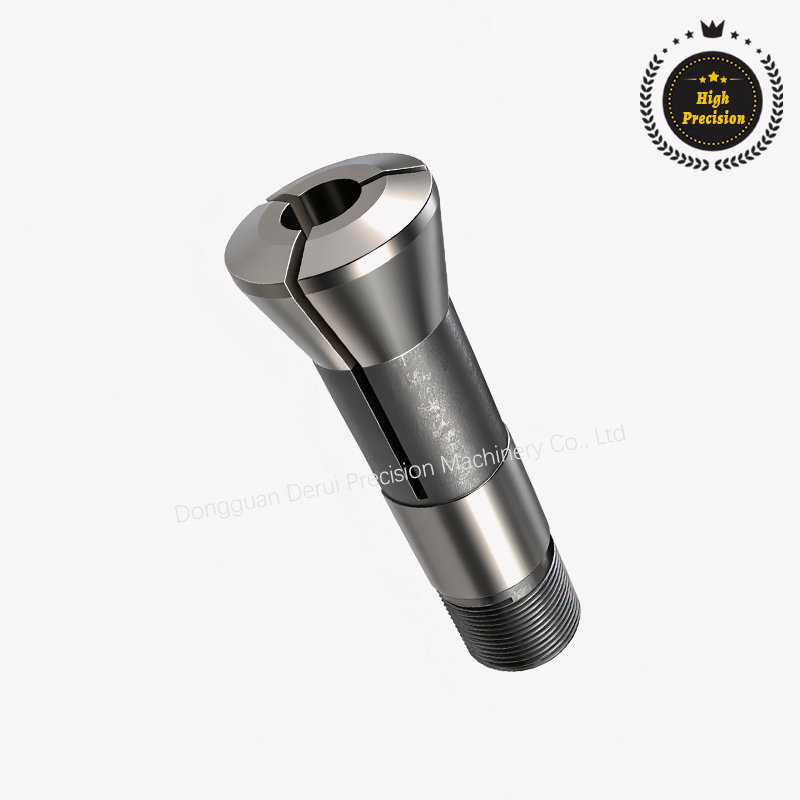

Changing Collets for Different Workpieces
Pulls back clamp workpiece, preventing jamming

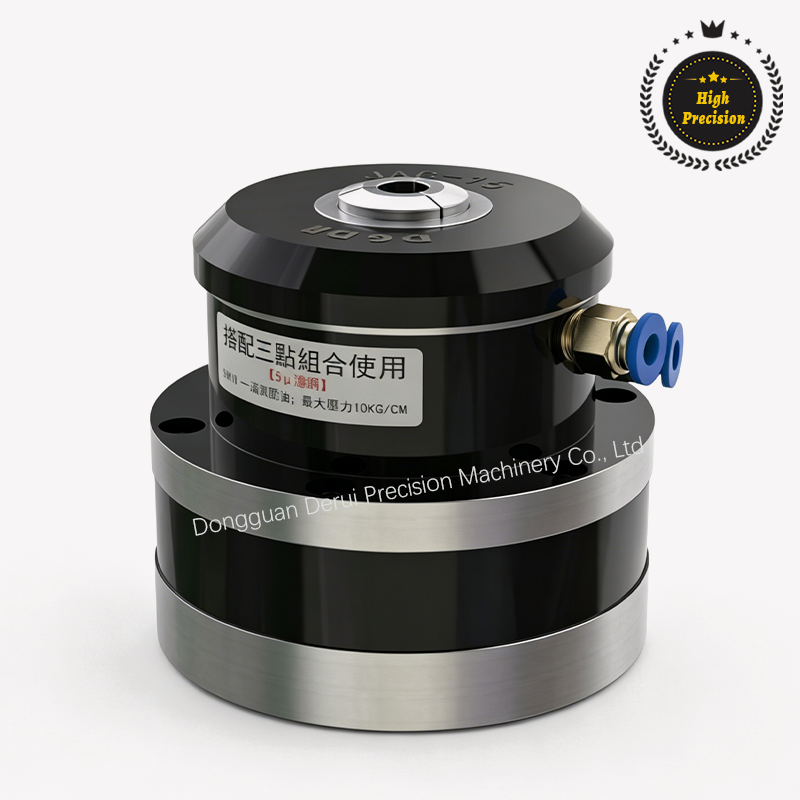

Installation-Free Cylinder (Hydraulic Cylinder)
Clamping Repeatability: 0.025 mm

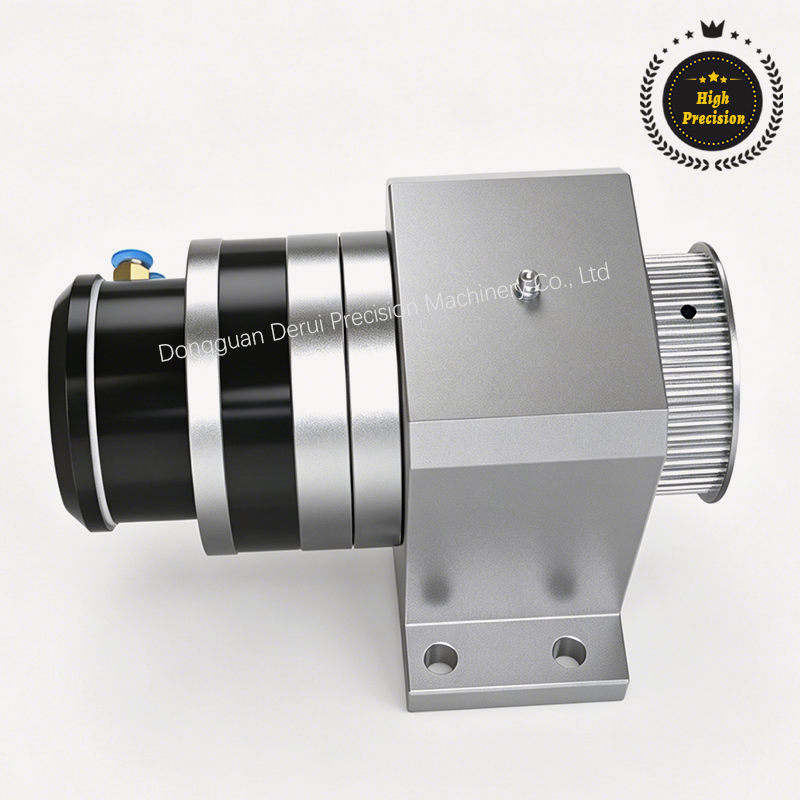

The rear drive can be connected via a direct motor coupling, synchronous pulley and belt, or gears
Used in automated equipment such as precision lathes，grinding machines, laser cutters, and robots
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
