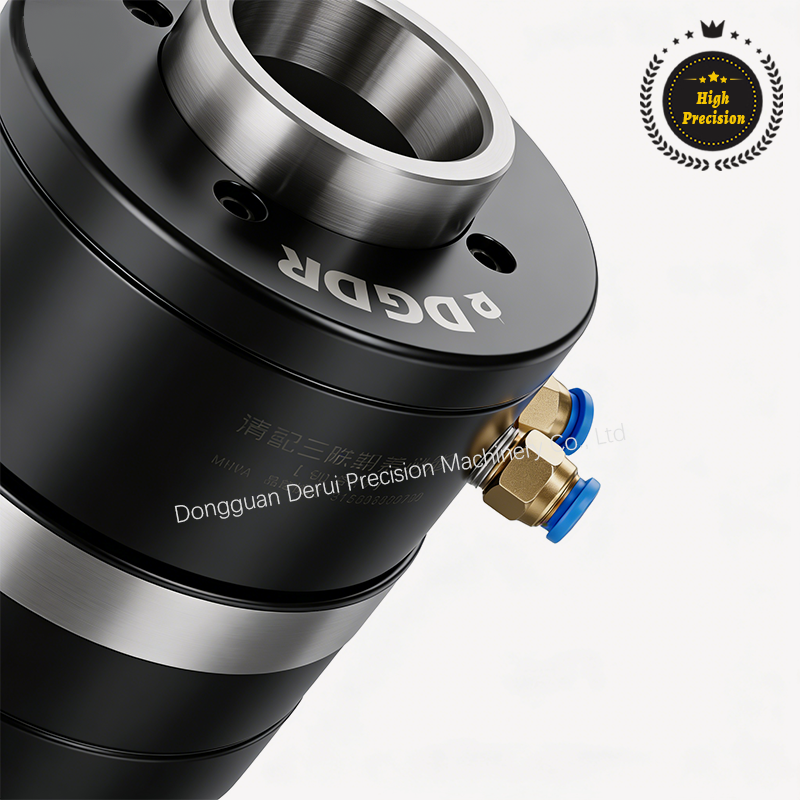

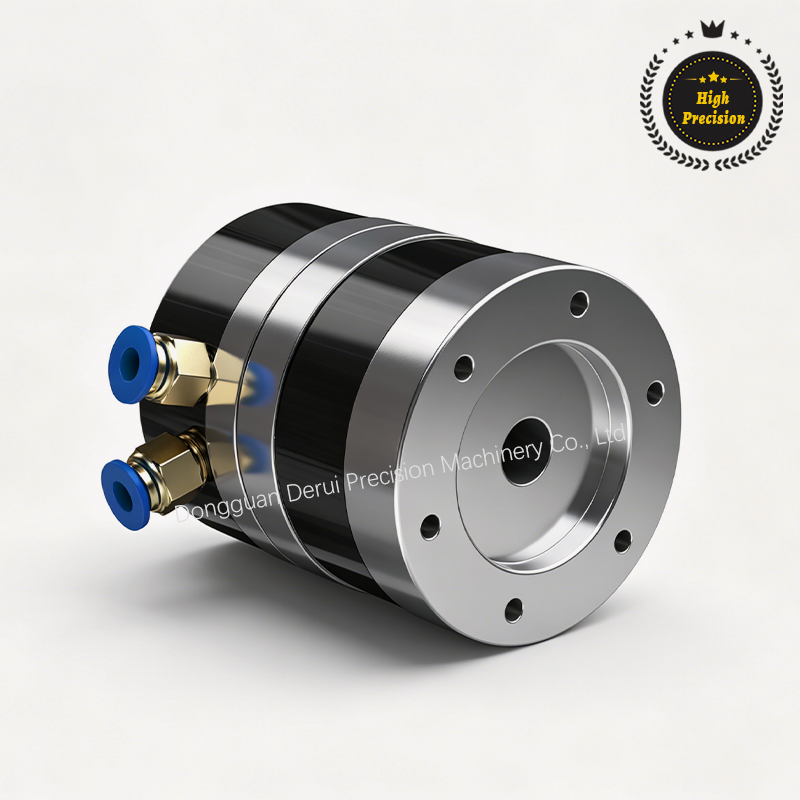

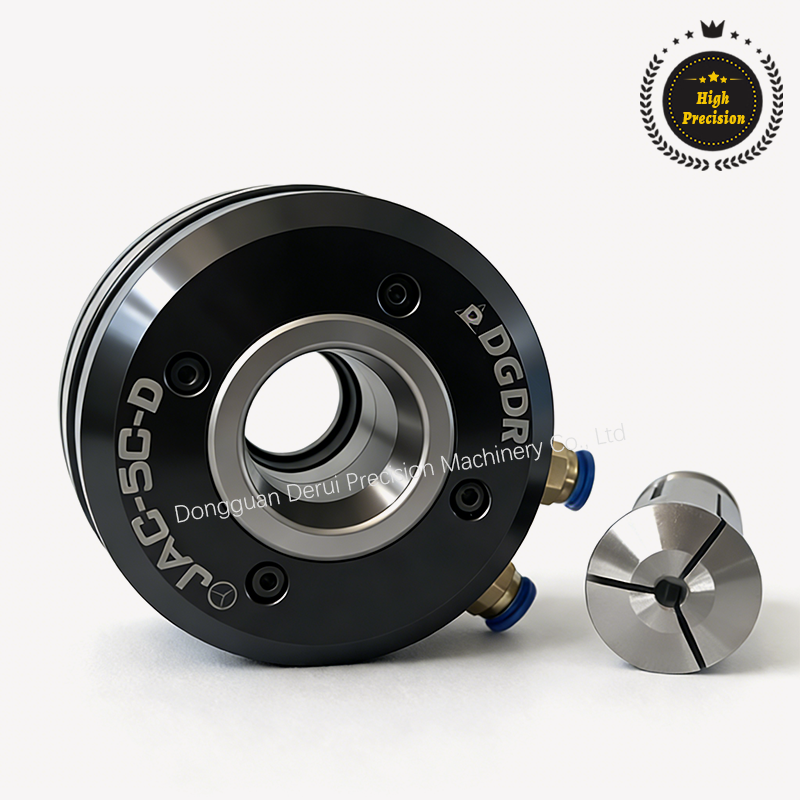

JAC-D Series
Small Pneumatic Rotary Chuck
High Precision
$ 552 USDMotor price not included

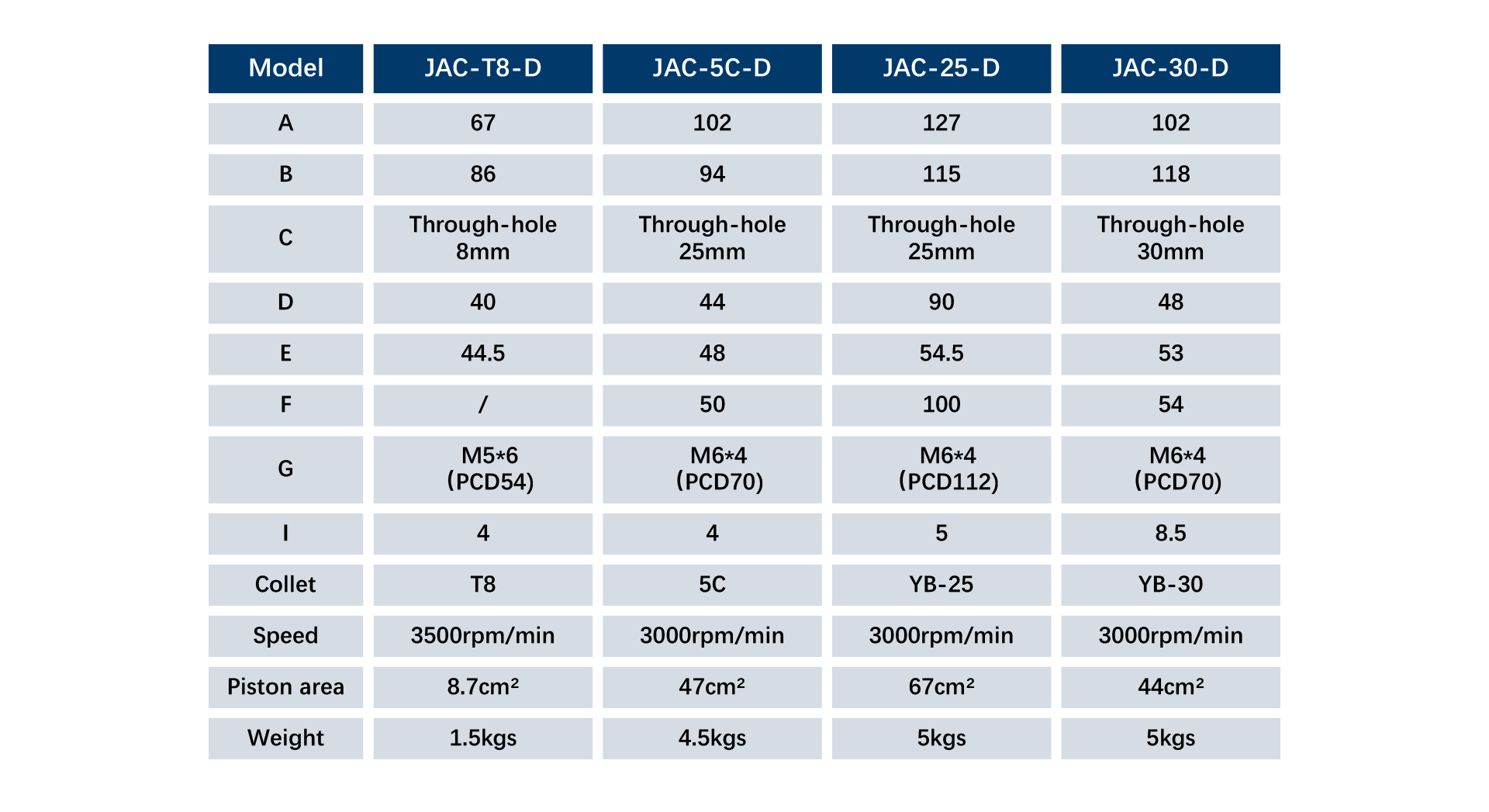

Model
DGDR JAC-25-D

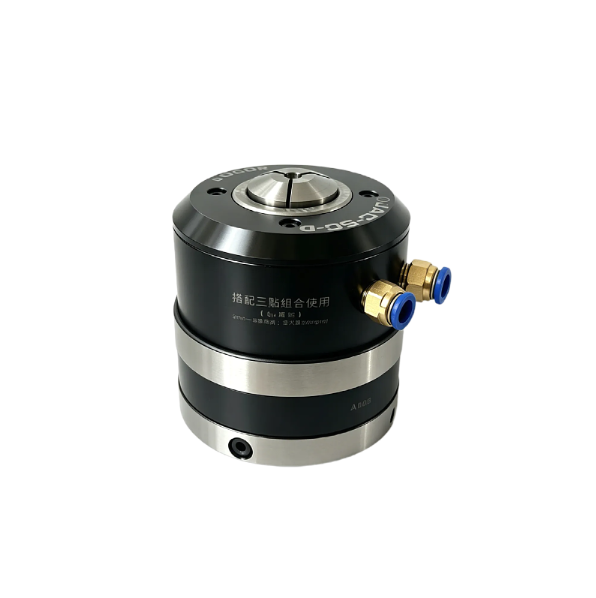

JAC-5C-D

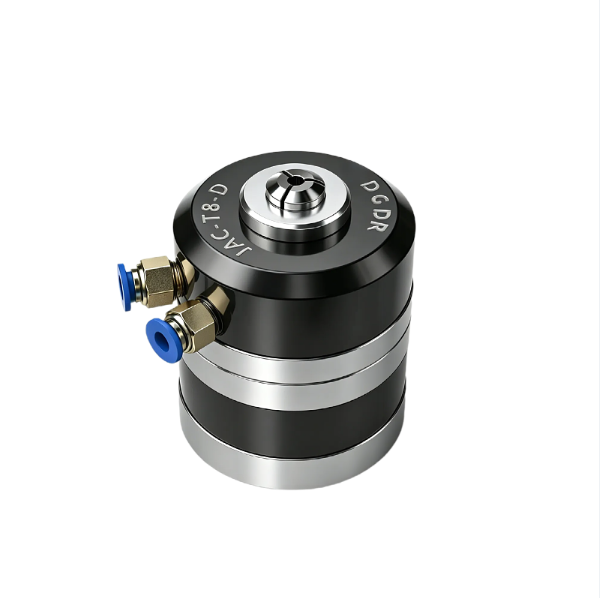

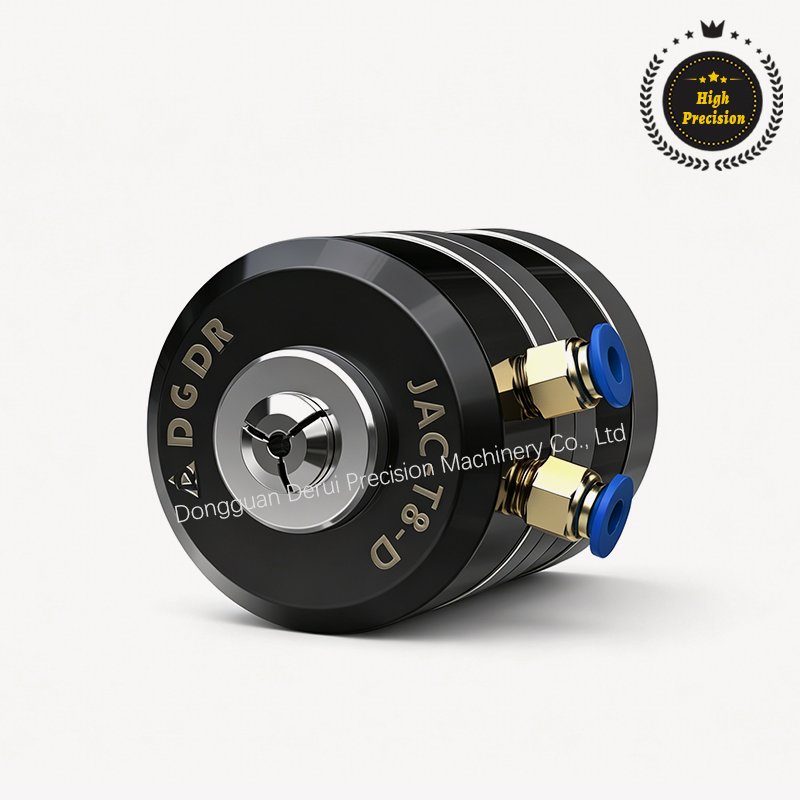

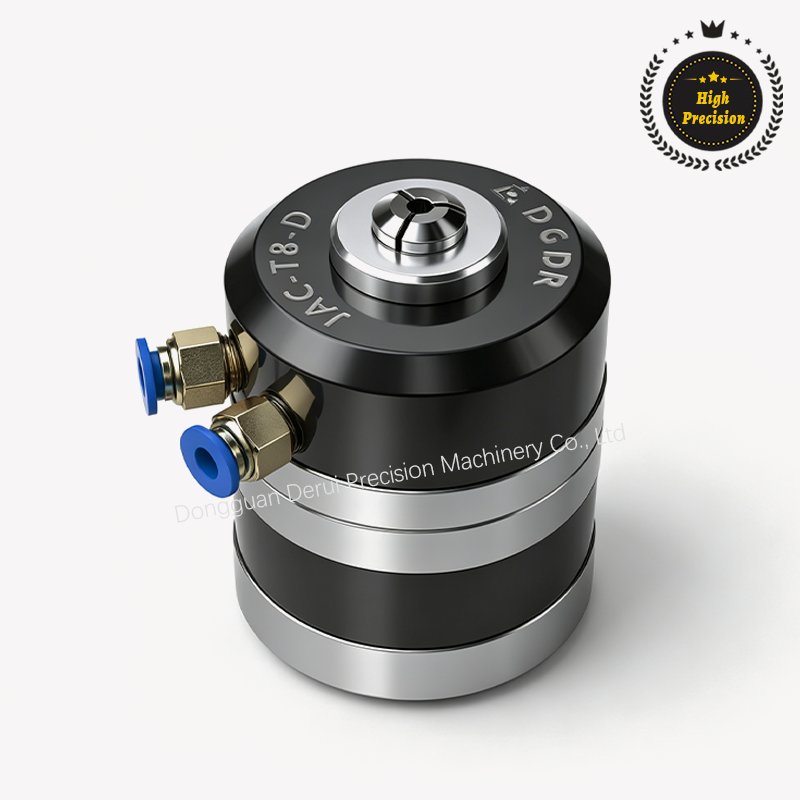

DGDR JAC-T8-D
Small installation outer diameter; steel body
Repeat Clamping Accuracy: 0.03 mm
Installation-Free - Hydraulic/Pneumatic Cylinder
Changing Collets for Different Workpieces
Air pressure: 3–7 kg/cm²; dustproof and waterproof
Widely used various specialized automated machines
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
