GD Spindle Series

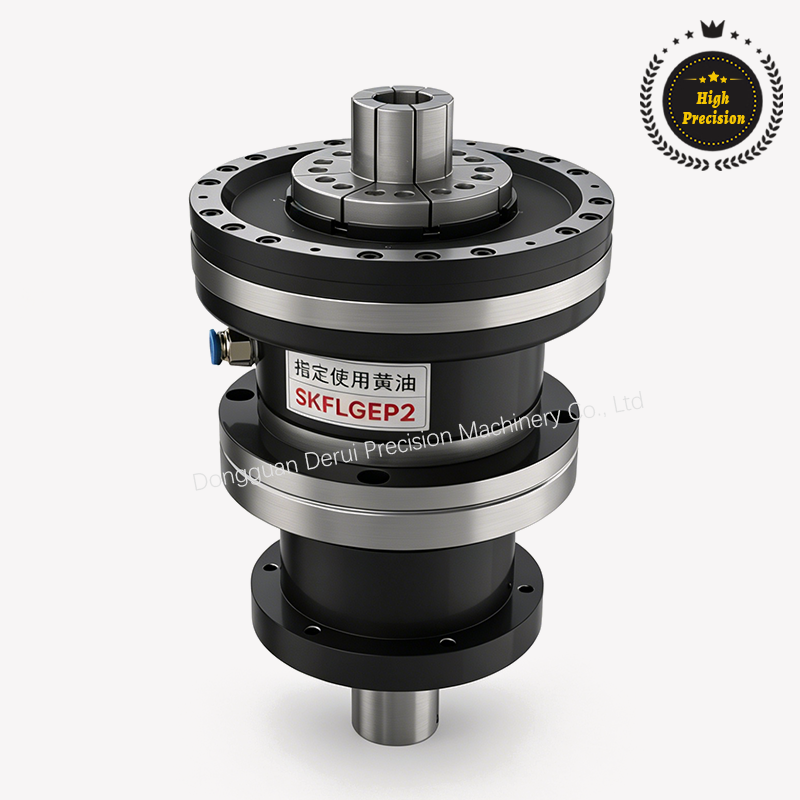

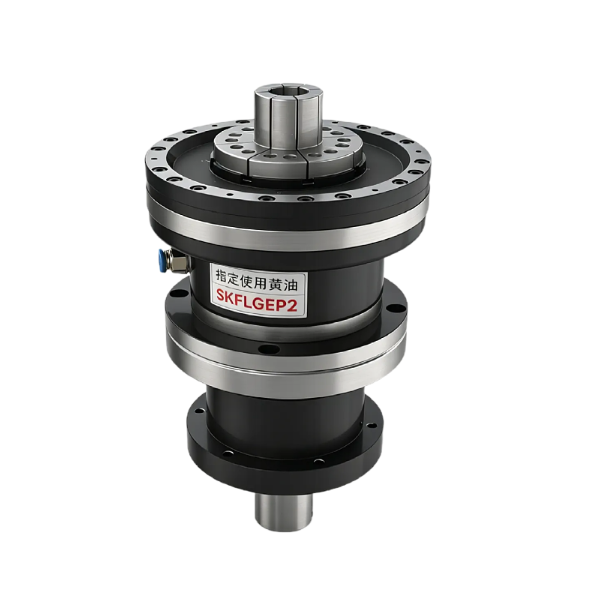

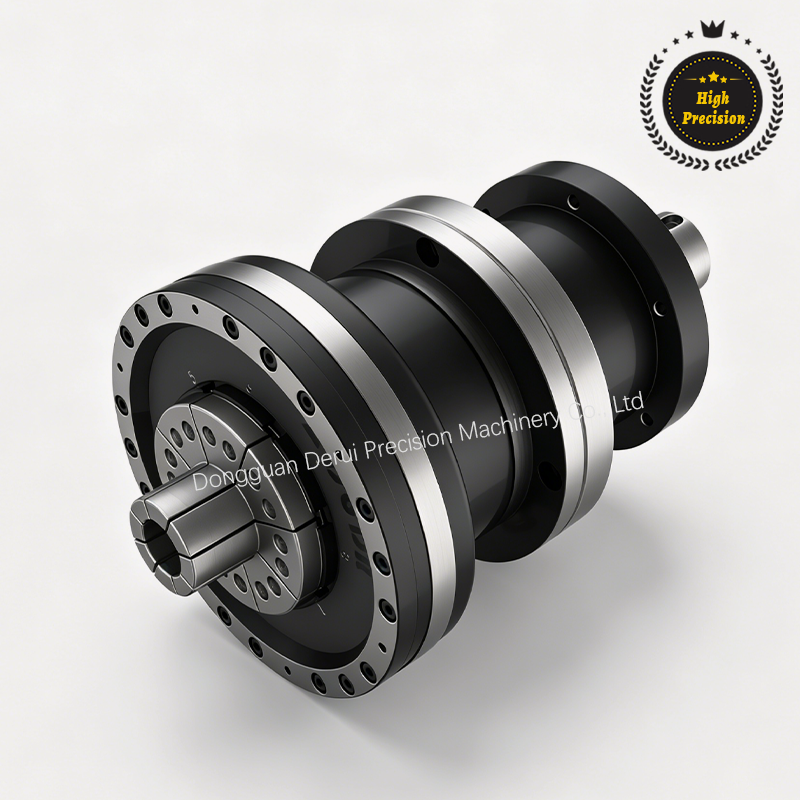

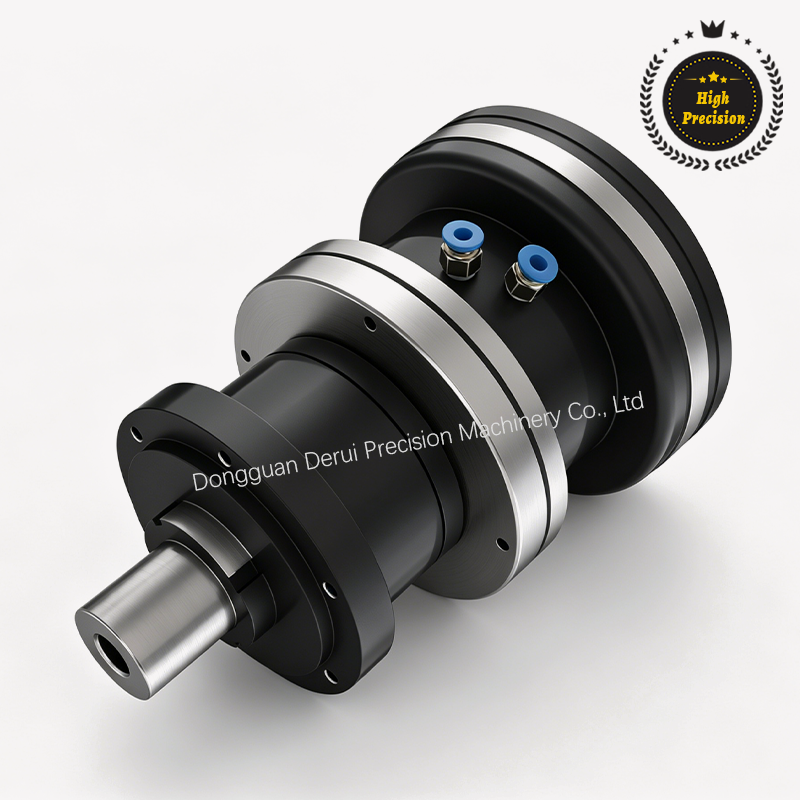

High-Precision Spindle Integration (Vertical)
High Precision
$ 2389 USDMotor price not included

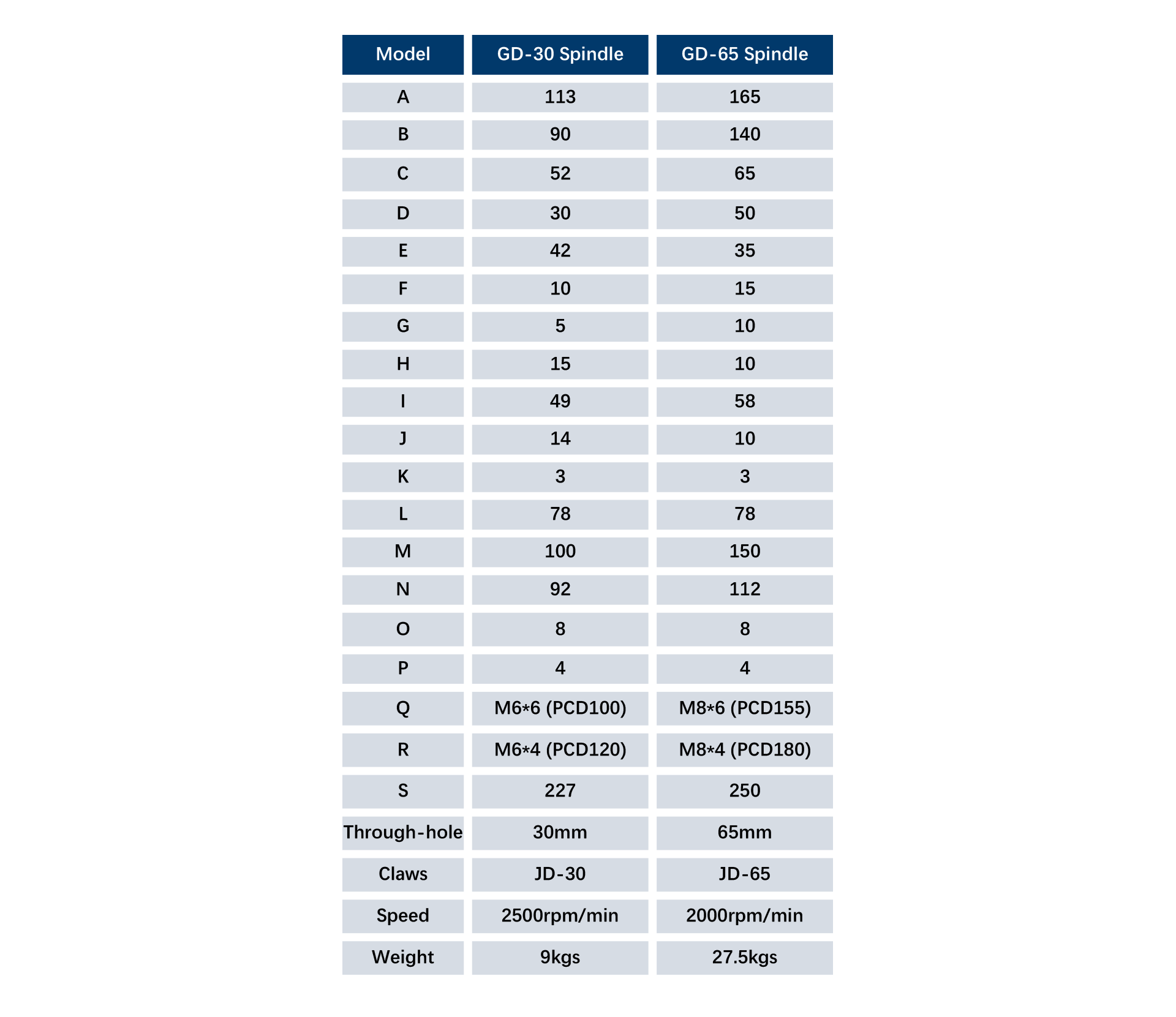

Model

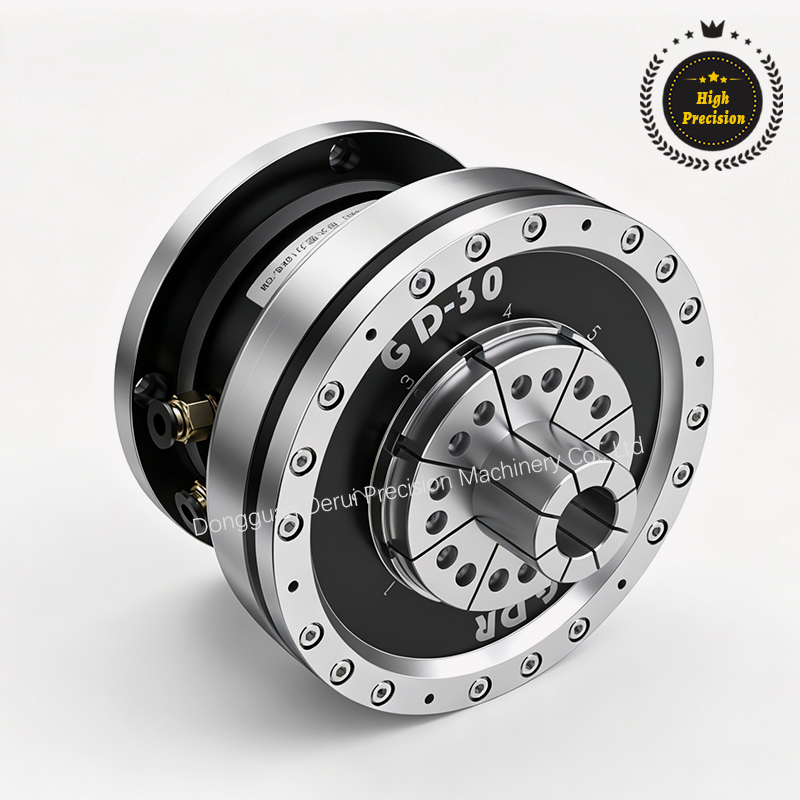

DGDR GD-30 Spindle
DGDR GD-65 Spindle
Clamping Range: 0.35–178 mm
Installation-Free Rotary Cylinder,Interchangeable，Diaphragm Jaws for Different Workpieces
Clamping repeatability within 0.005 mm
Air pressure: 3–8 kg/cm²; dustproof and waterproof
Suitable for clamping thin-walled and small，intricate workpieces, with adjustable clamping force

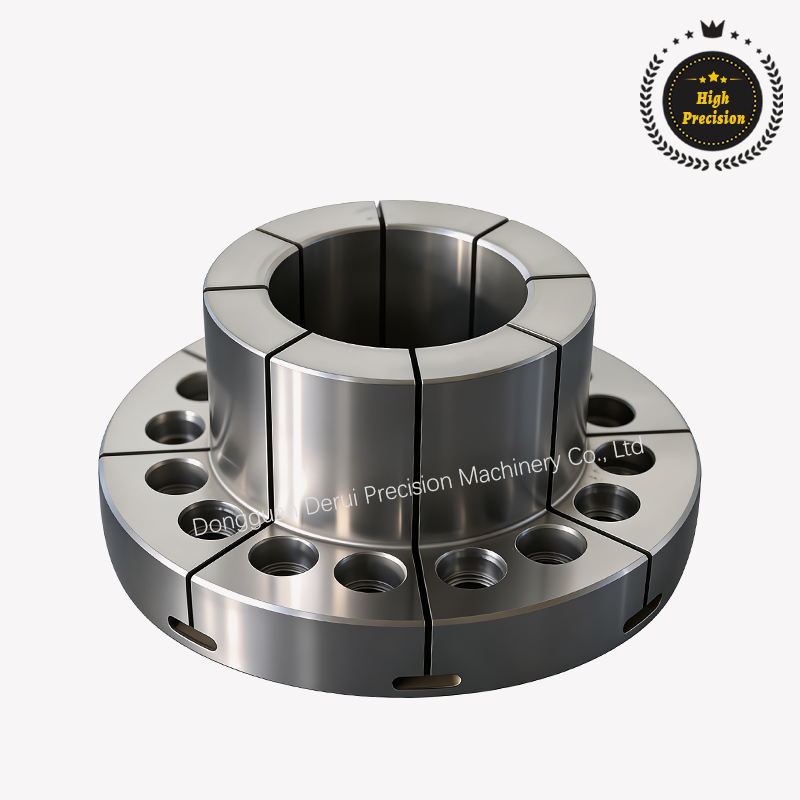

The gripper features a 6-jaw or 8-jaw design，allowing for self-fabrication or modification of the jaws
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
